Removing Striker Pin

WARNING: This page is about a different variant/trim than selected.
  1. Remove striker pin (lock peg) -1-  .

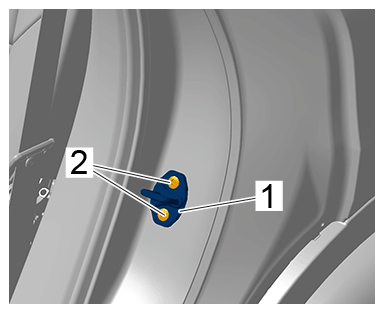

    G15260821Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear striker pin (lock peg)

    Mark position of striker pin (lock peg) -1-  .

    Unscrew fastening screws -2-  .

    Remove striker pin (lock peg) -1-  .
