Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

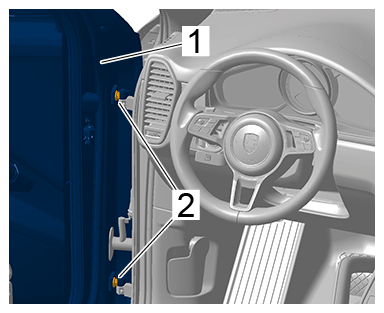

Door hinges to bodyshell	Items 1 and 2	Tightening torque	32 Nm (24 ftlb.) >+ 45°

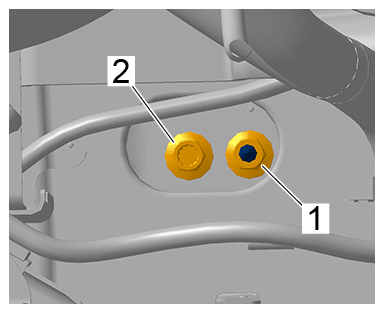

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom nut

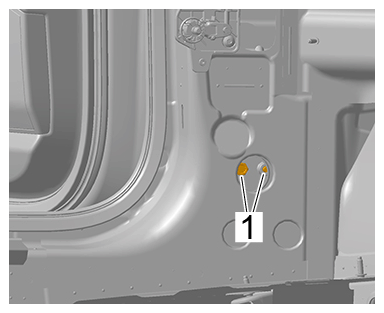

Screws securing door hinges to door	Item 1	Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge
