Removing Striker Pin
WARNING: This page is about a different variant/trim than selected.

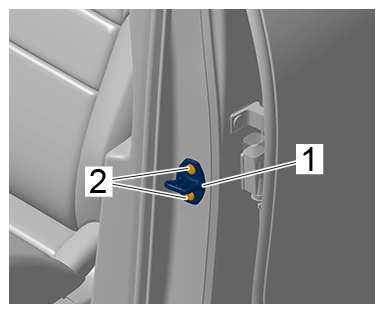

- Remove the striker pin -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Lock peg
- 1.1 Mark position of striker pin (lock peg) -1-
.
- 1.2 Unscrew fastening screws -2-
.
- 1.3 Remove the striker pin -1-
.
