Installing Striker Pin

WARNING: This page is about a different variant/trim than selected.
  1. Install lock peg -1-  .

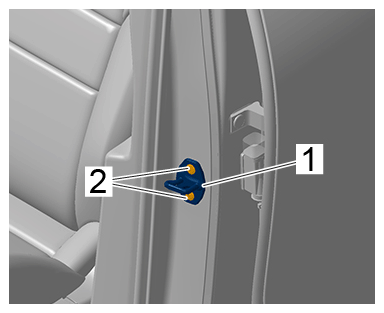

    G15260674Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg

    1. 1.1 Fit striker pin (lock peg) -1-  and align according to the marking.
    2. 1.2 Screw in -2-  fastening screws.
    3. 1.3 Carefully close the door and check that the lock peg -1-  is positioned correctly with respect to the door lock.
    4. 1.4 Re-align lock peg -1-  if necessary.
    5. 1.5 Tighten fastening screws to > Tightening torque 25 Nm (19 ftlb.)  .
  2. Remove the markings you made.
  3. Check gap dimensions and adjust the lock peg -1-  if necessary.
    G15260675Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg
