Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Adjusting screw for door handle in service position |
Item 2 |
Tightening torque |
3.5 Nm (2.6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

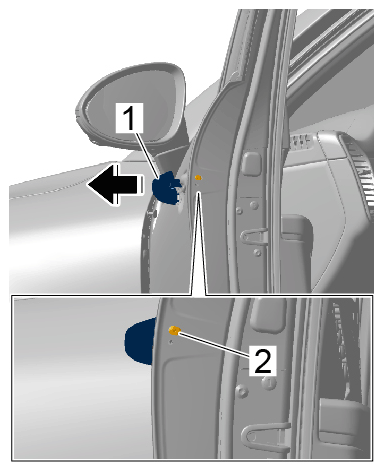

Door handle in service position |
| Screw on door handle |
Item 1 |
Tightening torque |
2.5 Nm (1.9 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

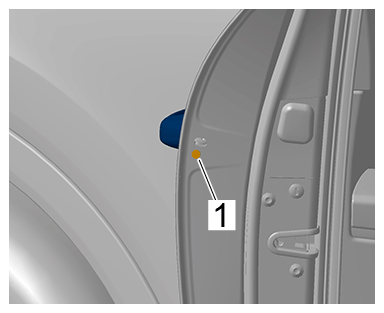

Screw |
