Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

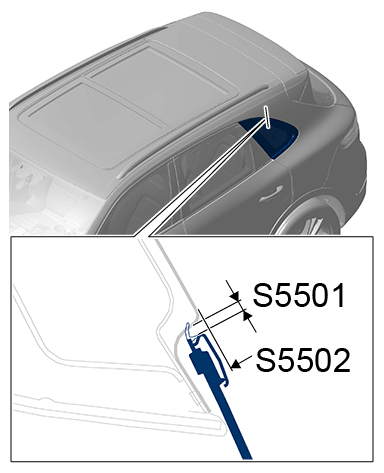

| Side window to rear side panel, top (S5501) | Gap dimension | 4.9 mm | +/- 1 mm | ||
|
Gap dimension |
|||||

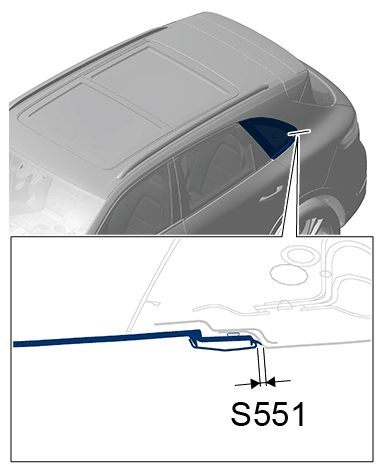

| Side window to rear side panel, rear (S551) | Gap dimension | 3 mm | +/- 0.5 mm | ||
|
Gap dimension |
|||||

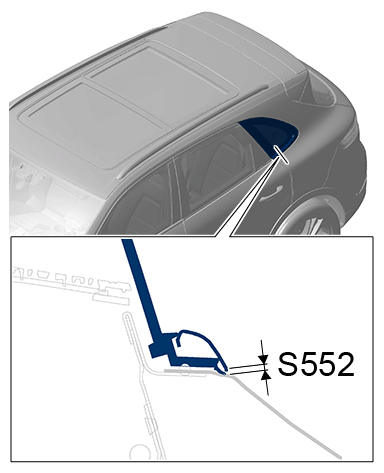

| Side window to rear side panel, bottom (S552) | Gap dimension | 0.8 mm | +/- 0.5 mm | ||
|
Gap dimension |
|||||
| Applying adhesive (X) | Application depth | 15 mm |
