Removing Rear Side Window

WARNING: This page is about a different variant/trim than selected.

WARNING: Vehicle windows removed and installed incorrectly

Danger of cuts
Risk of eye injuries

→ Wear personal protective gear.
→ Always shut off power supply when replacing cutting knife.

Information

The procedure for removing car windows is described in

> 6X00IN General information on removing car windows

Information

To reduce the forces during removal and thereby the risk of damage, a suitable tool must be used as a support during removal at accessible connection points.

Information

The new rear side window is supplied complete with trim frame and trim.

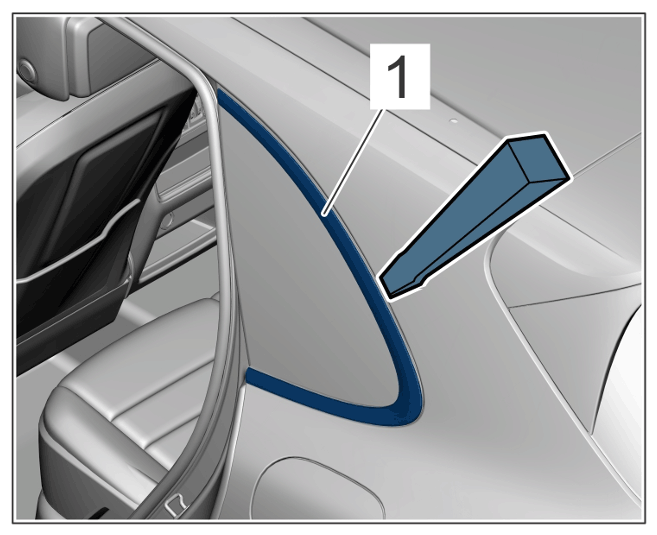

Lever off trims -1- using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim frame

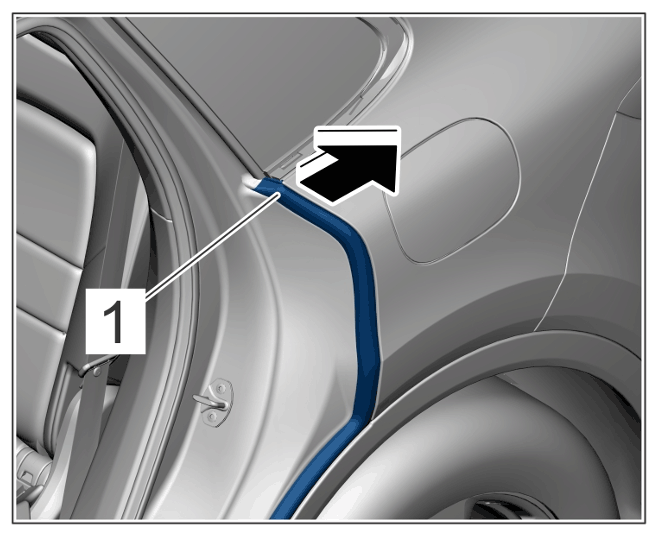

Unclip seal -1- in the upper area. -Arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seal

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

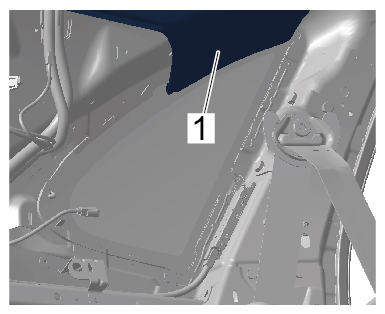

Headliner
- Do not damage the headliner -1- .

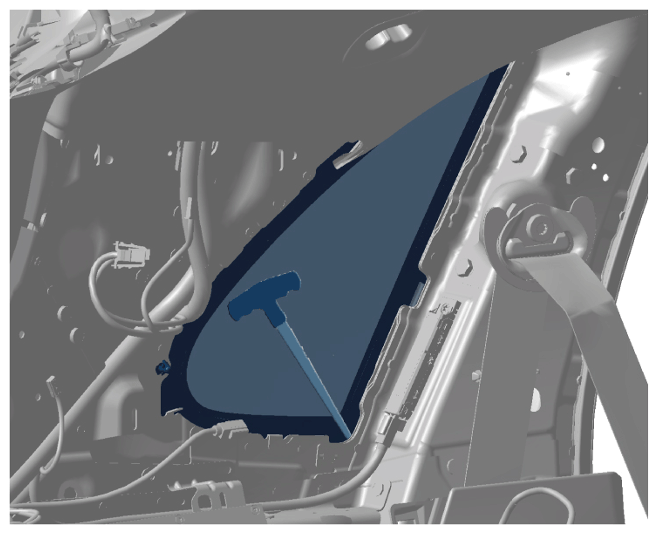

Pierce adhesive bead using a scratch awl and cutting cord on the lower C-pillar from the inside out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Scratch awl
Attach suction cup from > VAS 861 001A - window removal set to the outer rear side window.
Cut out rear side window using cutting cord.
- > 6X00IN General information on removing car windows
