Removing Rear Door Window

WARNING: This page is about a different variant/trim than selected.
  1. Move rear door window -1-  into position.
    G15237381Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear door window

    1. 1.1  Connect wiring harness in door panel.
    2. 1.2  Raise rear door window -1-  until the fixing clip -2-  is easily accessible.
    3. 1.3  Disconnect wiring harness in door panel.
  2. Unclip rear door window -1-  from the fixing clips using a plastic wedge.

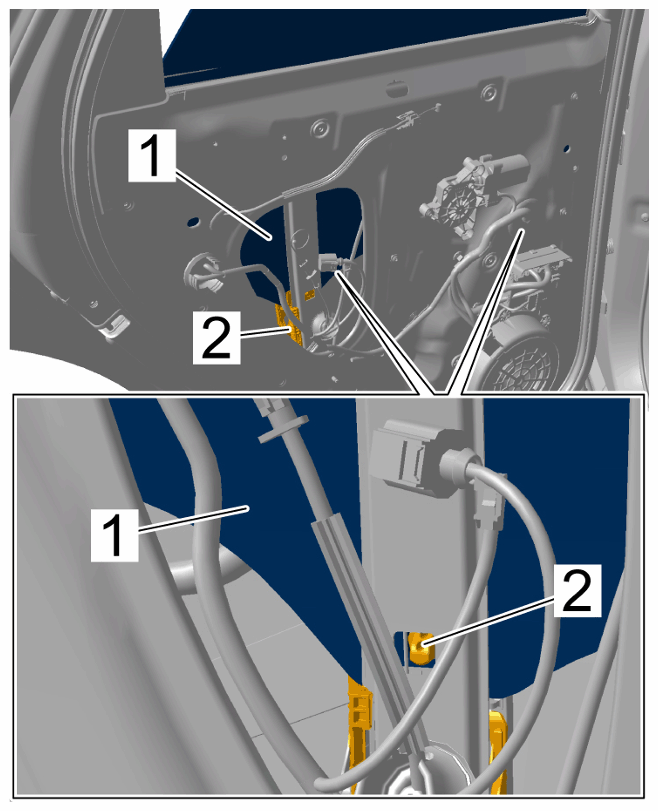

    G15237382Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips

  3. Pull rear door window up and out.
