Removing Front Window Channel Seal

WARNING: This page is about a different variant/trim than selected.
  1. Roll the door window down.
  2. Lever off front window channel seal -1-  by pressing outwards using an assembly wedge -Arrows-  .

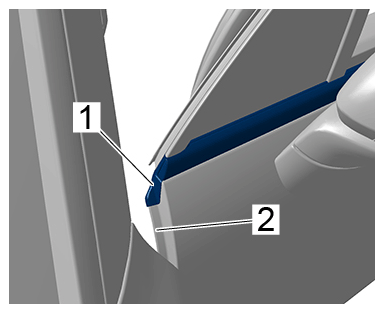

    G15237365Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window channel seal
