Removing Front Door Window

WARNING: This page is about a different variant/trim than selected.
  1. Move front door window -1-  into position.
    G15237332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front door window

    1. 1.1  Connect wiring harness in door panel.
    2. 1.2  Raise the front door window -1-  until the fixing clips -2-  are easily accessible.
    3. 1.3  Disconnect wiring harness in door panel.

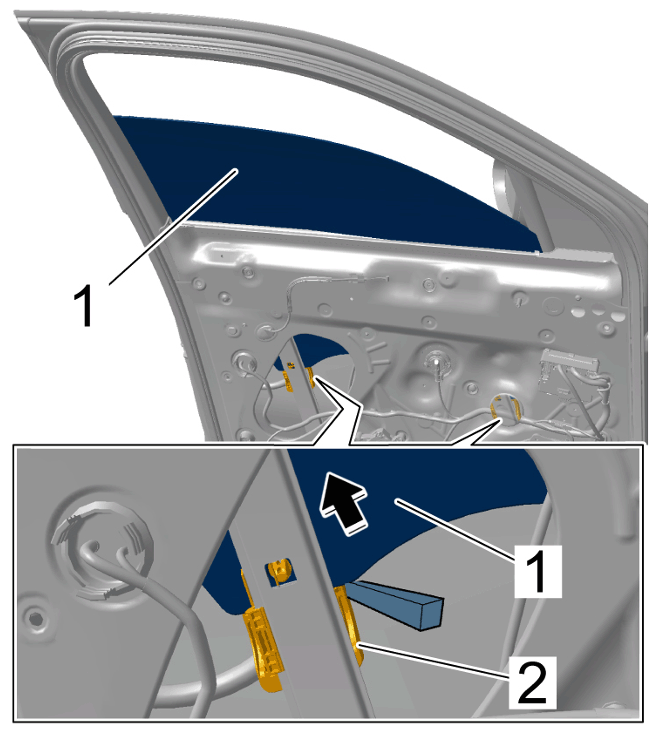

  2. Use an assembly wedge to unclip the front door window -1-  from the fixing clips -2-  and remove front door window -1-  by pulling it upwards -Arrow-  .
    G15237333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips
