Removing Lower Steering Column

Information

• Do not carry the steering column lower part at the universal joint or seal bellows.
• Do not hold the universal joint or the seal bellows when removing and fitting.

1. Loosen universal joint -1-  for steering column at the power-steering gear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

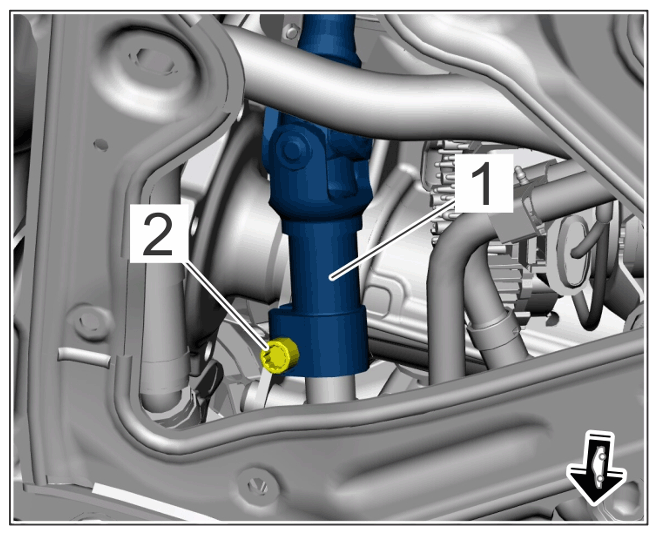

   Universal joint for power-steering gear/lower steering column

   1. 1.1 Unscrew screw -2-  .
   2. 1.2 Pull universal joint for steering column off the power-steering gear splines.
   3. 1.3 Replace screw and clean thread on the universal joint.
2. Loosen universal joint -1-  at the steering column centre.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

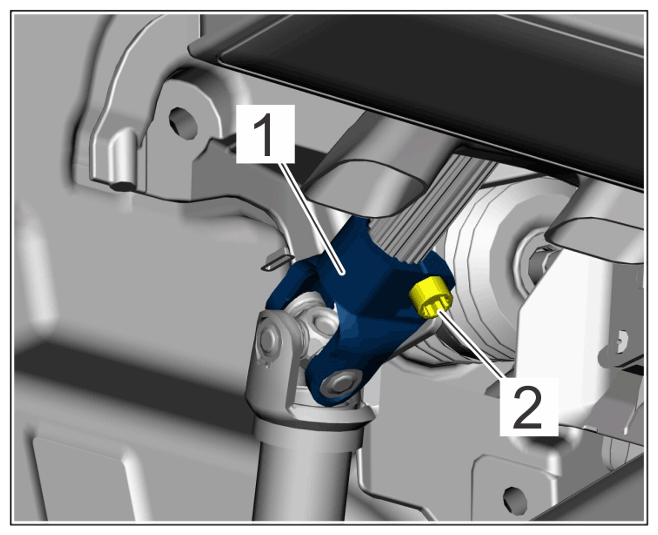

   Universal joint for steering column centre

   1. 2.1 Unscrew screw -2-  on steering column centre.
   2. 2.2 Pull universal joint -1-  for lower steering column off the steering column centre splines.
   3. 2.3 Replace screw -2-  and clean thread on universal joint.
3. Loosen sealing bellows -1-  at the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

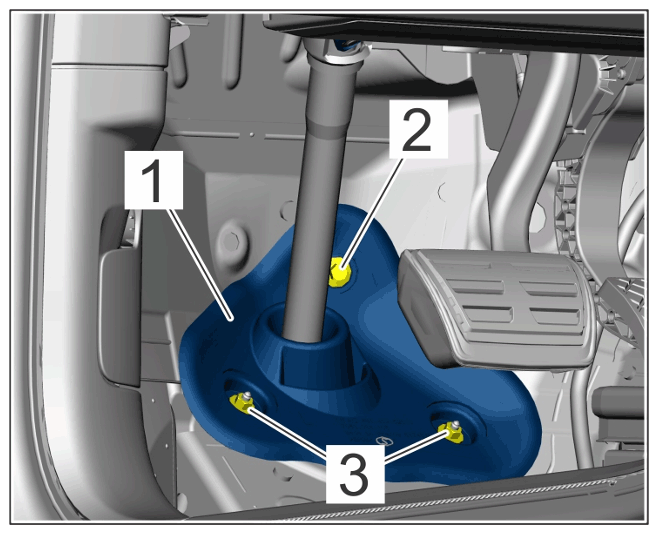

   Sealing bellows for lower steering column (LHD vehicle)

   1. 3.1 Unscrew screw -2-  (LHD vehicles only).
   2. 3.2 Unscrew nuts -3-  .
4. Remove lower steering column via the driver's footwell.

   Do not pull out the steering column at the upper universal joint or sealing bellows!
