Removing Trim Panel For (Side) Loudspeaker

WARNING: This page is about a different variant/trim than selected.
  1. Remove trim panel for (side) loudspeaker -1-  .

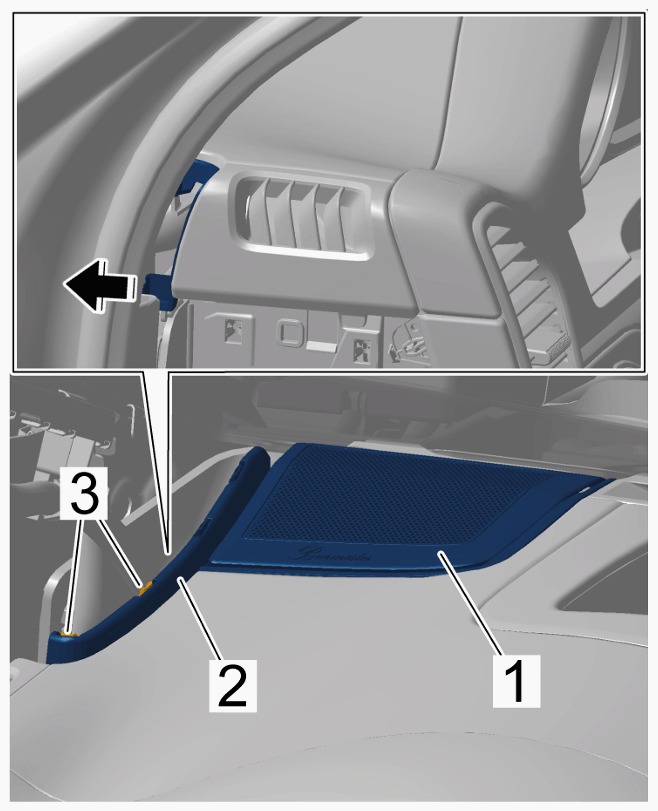

    G15239838Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for (side) loudspeaker

    1. 1.1  Unclip decoupling element for A-pillar trim panel -2-  from the dashboard -Arrow-  .
    2. 1.2  Unclip decoupling element for A-pillar trim panel -2-  at the clips -3-  .
    3. 1.3  Insert a plastic wedge between the dashboard and (side) loudspeaker cover -1-  and unclip it.
    4. 1.4  Remove decoupling element for A-pillar trim panel -2-  together with trim panel for (side) loudspeaker
