Removing Trim Panel For (Centre) Loudspeaker

WARNING: This page is about a different variant/trim than selected.

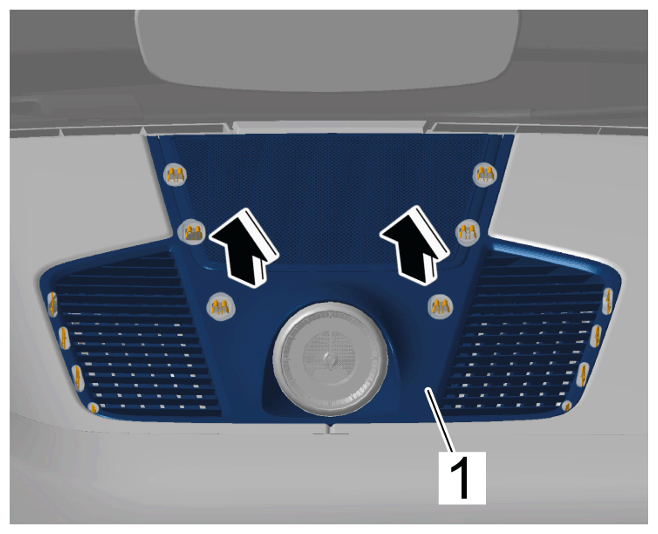

  1. Unclip trim panel for (centre) loudspeaker -1-Arrows-  and remove it until the electric plug connection is accessible.
    G15239835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for (centre) loudspeaker

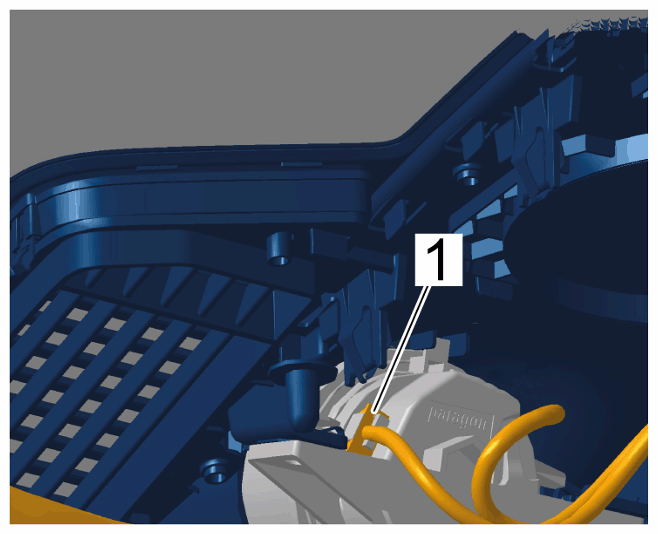

  2. Release and unplug electric plug connection -1-  .
    G15239836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Remove trim panel for (centre) loud speaker.
