Installing Trim Panel For Rear Kid
WARNING: This page is about a different variant/trim than selected.
Information
Check whether clips are bent or broken.
Check that all clips are positioned fully and correctly.
Replace missing and damaged clips with new clips.
- Installation is performed in reverse order. Pay particular attention to the following:

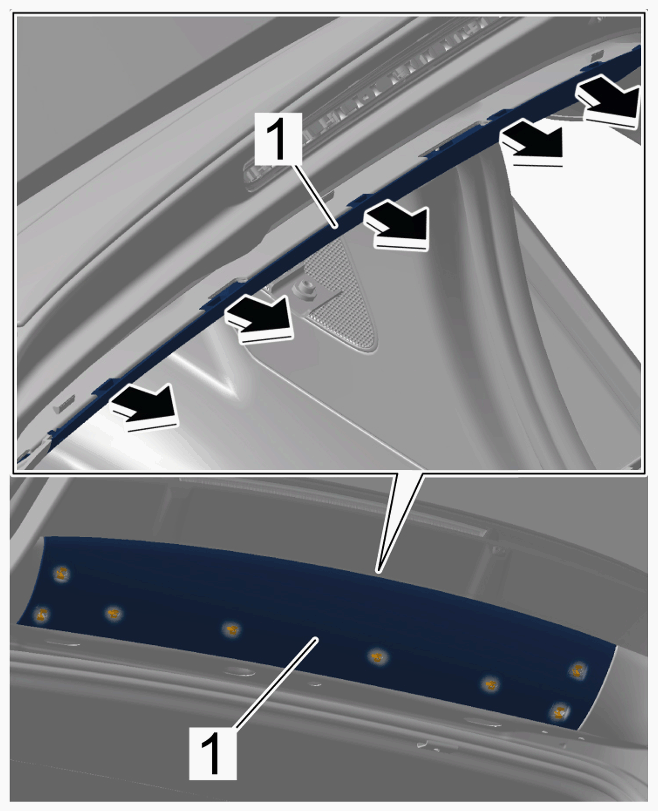

The window frame trim panel at the centre -1- must be inverted over the edge of the window frame -Arrows- .
Tighten screws on trim panel for rear lid to > Tightening torque 2 Nm (1.5 ftlb.) .
Trim panel for window frame, centre
