Removing Roof Trim Panel

Information

Make sure that the roof cover does not buckle.

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

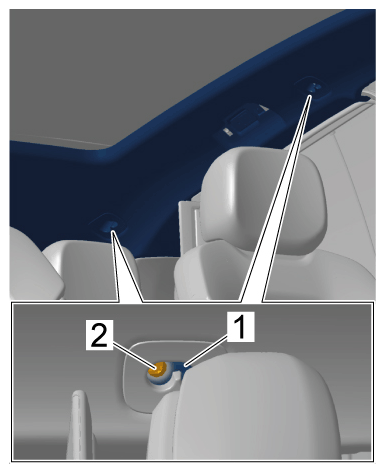

1. Open the cover -1-  and unscrew screw -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

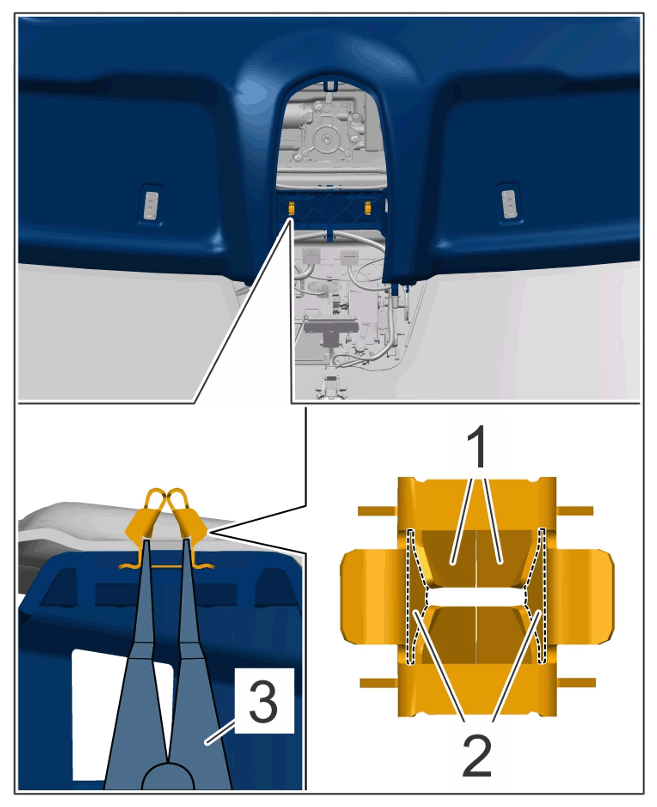

2. Unclip headliner.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headliner

   1. 2.1  > VAS 6427 - Release pliers -3-  must be inserted into the openings -2-  on the clip. This actuates the tabs -1-  on the clip and moves them inwards.

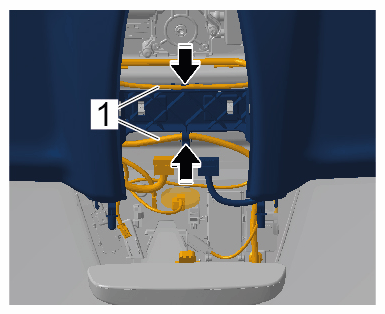

3. Unclip electric lines -1-  from the brackets -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric lines for headliner

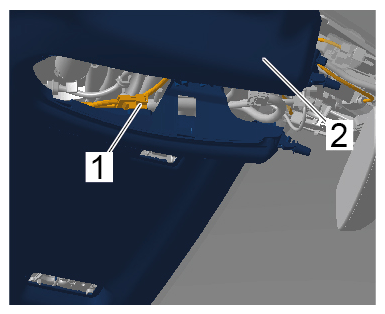

4. Release and disconnect electric plug connection -1-  from the headliner -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for headliner

5. Move front seats all the way forward and down and move backrests back fully.
6. Fold over rear seat.

   Information

   When removing the headliner, make sure to use a suitable tool as a support when unclipping it in the panoramic roof area.

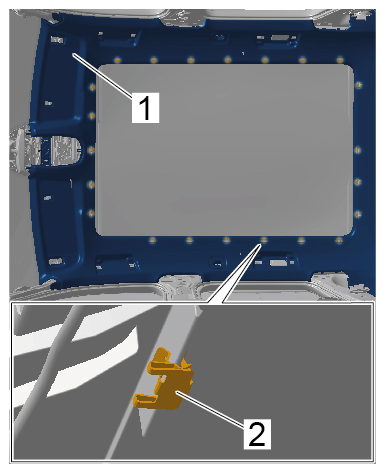

7. For vehicles with panoramic roof (3FU):

   Unclip headliner -1-  from retaining clips -2-  in the panoramic roof cut-out area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining clips on headliner

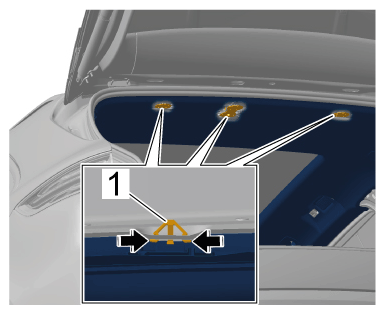

8. Press clip -1-  together using two screwdrivers -Arrows-  and detach rear headliner from the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headliner on body

9. Three people are needed in order to remove the headliner.
   1. 9.1  Position of 1st person: Driver's side.
   2. 9.2  Position of 2nd person: Passenger's side.
   3. 9.3  Position of 3rd person: Luggage compartment.

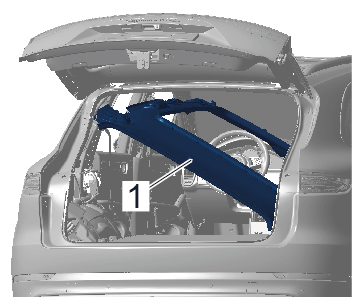

10. Remove headliner -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headliner

    1. 10.1  Lower the headliner -1-  on the passenger's side as far as possible.
    2. 10.2  Pull the headliner -1-  out towards the rear through the cut-out in the tailgate.
