Preliminary Work

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

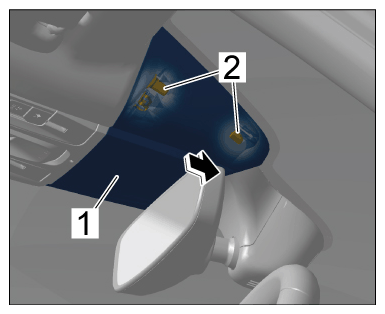

1. Unclip cover on camera -1-  by pulling it forward -Arrow-  and push it out of the guide lugs -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on camera

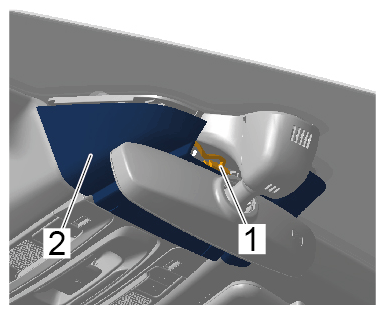

2. Disconnect electric plug connection -1-  on camera cover -2-  and remove camera cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection
