Removing Rear Door Panel

WARNING: This page is about a different variant/trim than selected.

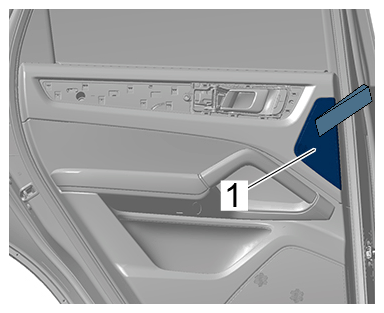

  1. Unclip loudspeaker trim -1-  using a plastic wedge and remove it.
    G15239800Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loudspeaker trim

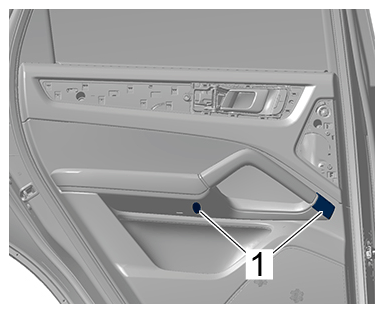

  2. Unclip covers -1-  using a plastic wedge and remove them.
    G15239801Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers

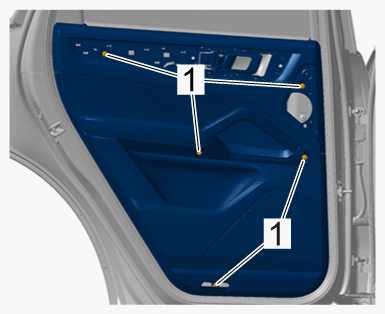

  3. Unscrew screws -1-  .
    G15239802Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

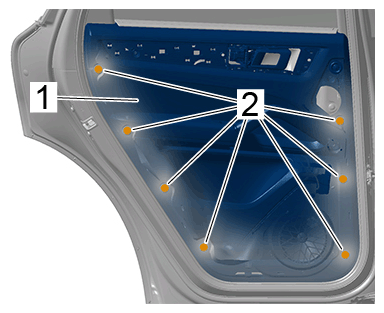

  4. Loosen rear door panel -1-  .
    G15239803Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

    1. 4.1  Unclip clips -2-  using a plastic wedge.
    2. 4.2  Remove rear door panel -1-  .

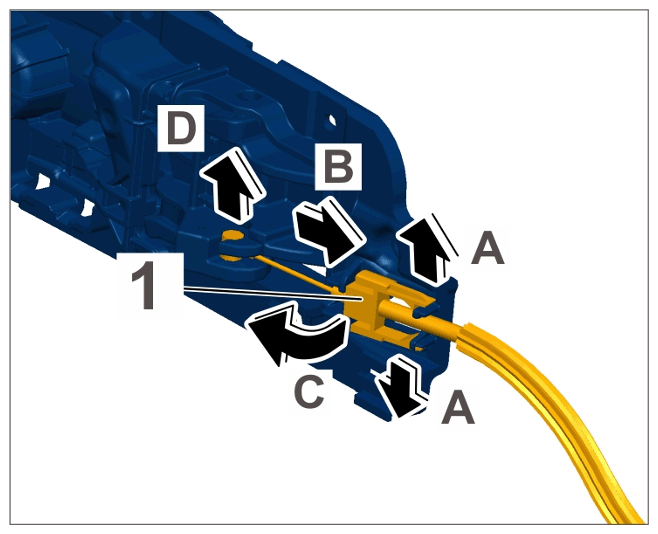

  5. Disengage cable for door opener -1-  .
    G15239804Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable for door opener

    1. 5.1  Spread locking lugs outwards -arrow A-  and pull cable for door opener -1-  to the rear -arrow B-  .
    2. 5.2  Swivel cable for door opener -1-  in direction of arrow -arrow C-  until the driver at the front is free.
    3. 5.3  Remove cable for door opener -1-arrow D-  .

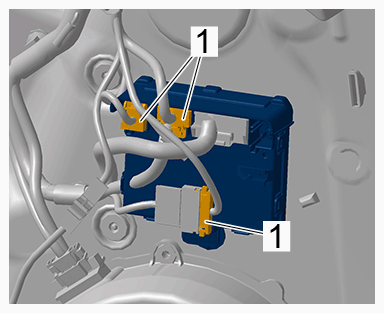

  6. Release and disconnect electric plug connections -1-  .
    G15239805Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  7. Remove rear door panel.
