Preliminary Work

> 70611903 REMOVING AND INSTALLING REAR DOOR PANEL TRIM

> 961619 REMOVE AND INSTALL DOOR WARNING LIGHT

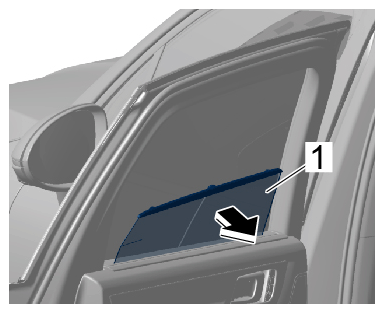

1. 3.1  Extend sun blind (on door window) -1-  and pull sun blind (on door window) -1-  away from the door window slightly -Arrow-  using your hand.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun blind (on door window)

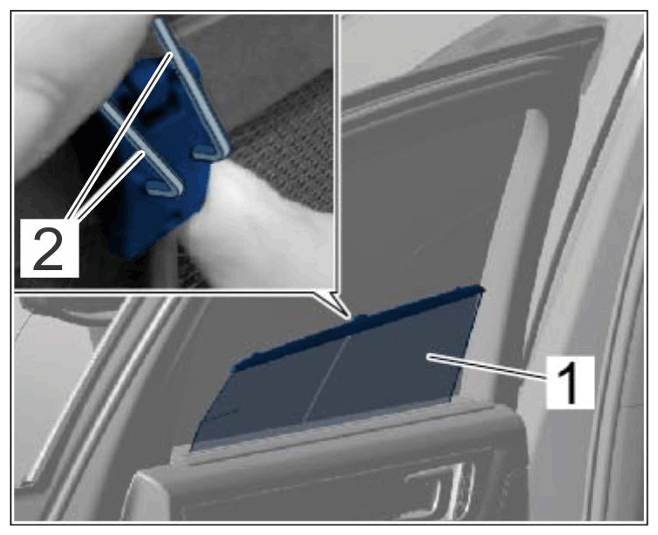

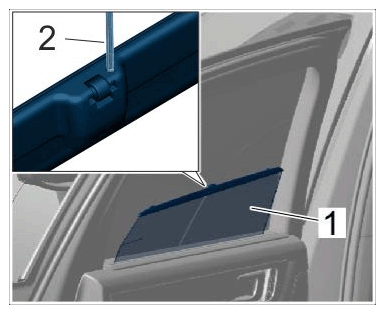

2. 3.2  Release the spring mechanism for the actuating rod on the sun blind (on door window) -1-  by pressing it using a 1.5-mm Allen key -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring mechanism for actuating rod (Cayenne)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring mechanism for actuating rod (Cayenne Coupe)

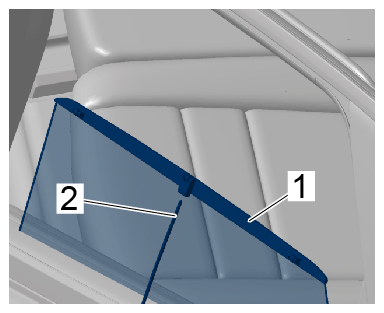

3. 3.3  Pull sun blind (on door window) -1-  off the actuating rod -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun blind (on door window)

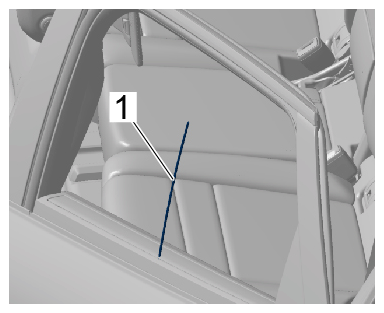

4. 3.4  Retract actuating rod -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Actuating rod

5. 3.5  If sun blind (on door window) Is defective and retracted

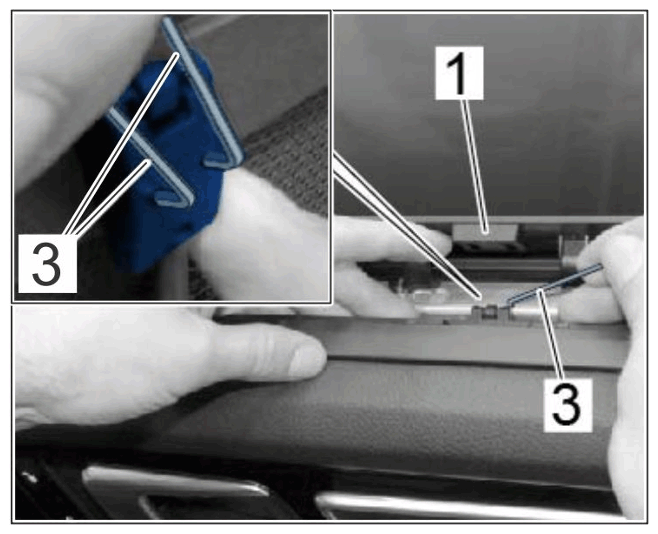

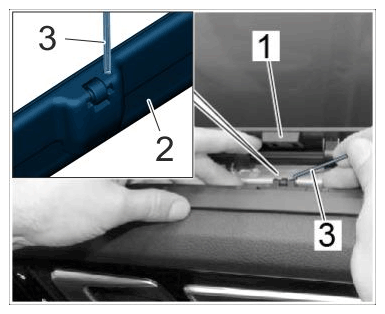

   Open cover -1-  by hand and release sun blind (on door window) -2-  by pressing the spring mechanism for the actuating rod using a 1.5 mm Allen key -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun blind (Cayenne)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun blind (Cayenne Coupe)
