Removing D-Pillar Trim Panel
WARNING: This page is about a different variant/trim than selected.
Information
To reduce the forces during removal and thereby the risk of damage, a suitable tool must be used as a support during removal at accessible connection points.

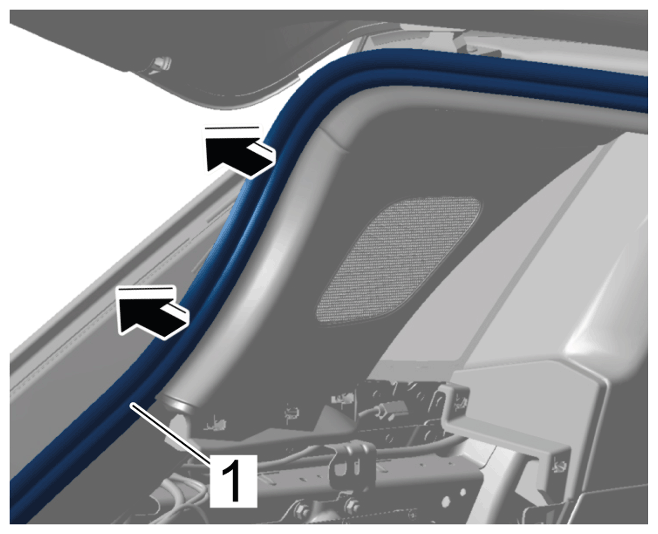

- Detach seal -1-
on rear lid in the rear D-pillar trim panel area -Arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear lid seal

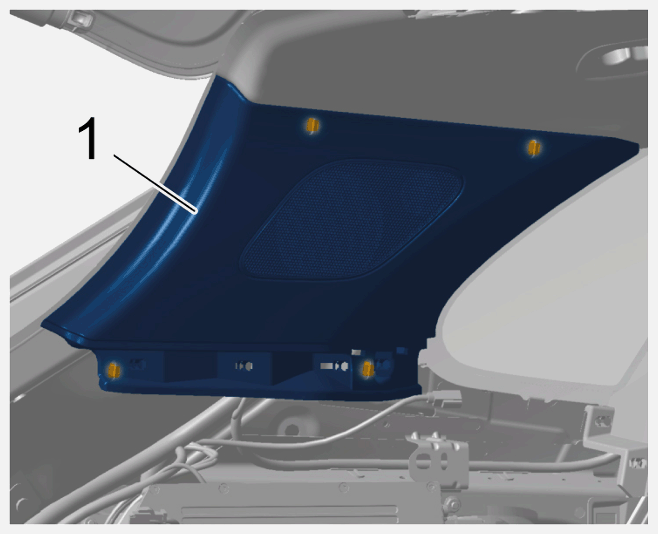

- Unclip D-pillar trim panel -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
D-pillar trim panel

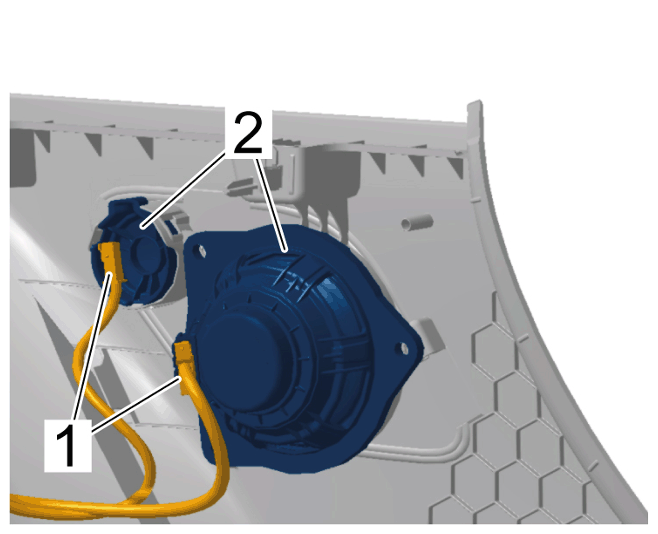

- Release and disconnect electric plug connections -1-
from loudspeakers -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connections
