Removing C-Pillar Trim Panel (Upper Part)

Information

To reduce the forces during removal and thereby the risk of damage, a suitable tool must be used as a support during removal at accessible connection points.

Information

• Move belt adjustment cover panel to its upper end position.
• Set belt adjustment to upper end position.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

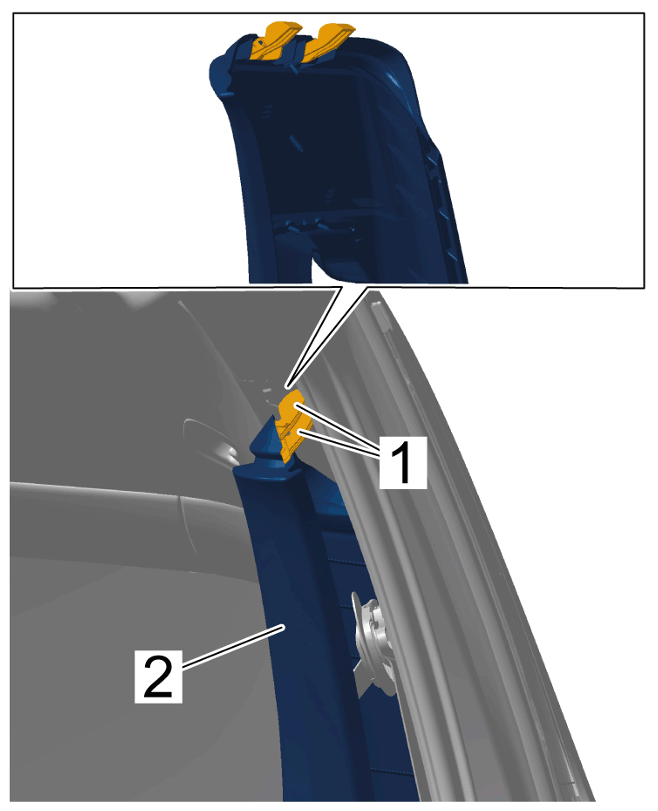

Clips on C-pillar trim panel (upper part)

• When swivelling out the C-pillar trim panel (upper part) -2-  , make sure not to damage the guide lugs -1-  .

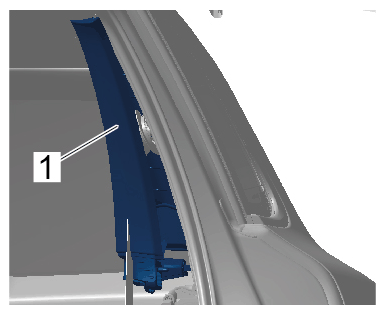

1. Unclip C-pillar trim panel (upper part) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   C-pillar trim panel (upper part)

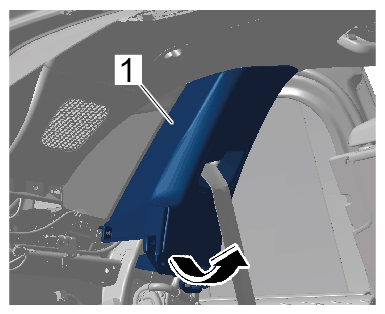

2. Swivel out C-pillar trim panel (upper part) -1-Arrow-  and remove it downwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   C-pillar trim panel (upper part)

3. Feed rear three-point belt through the opening in the belt adjustment cover panel.
