Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove C-pillar trim panel (lower part)

    > 70681901 REMOVING AND INSTALLING C-PILLAR TRIM PANEL (LOWER PART)

  2. Press carpet aside close to the screw -1-  .
    G15239780Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw for belt fitting

    Information

    Always replace screws on the three-point seat belt. Micro-self-locking screws must not be treated (greased) or loosened and then screwed on again.

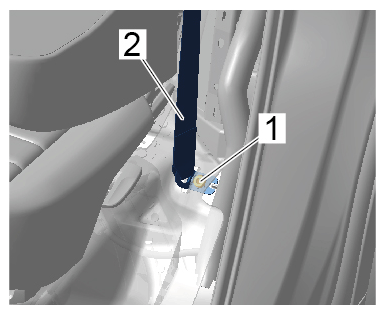

  3. Unscrew screw -1-  , loosen rear three-point belt -2-  and secure it to prevent it from slipping out.
    G15239781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw for belt fitting
