Removing (Lower Part Of) C-Pillar Trim Panel

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

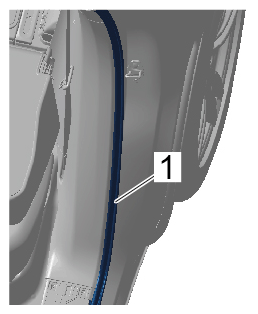

1. Detach door seal -1-  in the C-pillar trim panel (lower part) area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Door seal

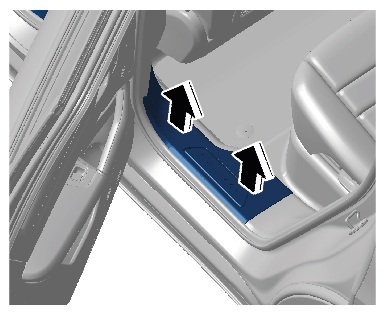

2. Lift rear inner door sill trim as far as required -Arrows-  until the C-pillar trim panel (lower part) is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear inner door sill trim

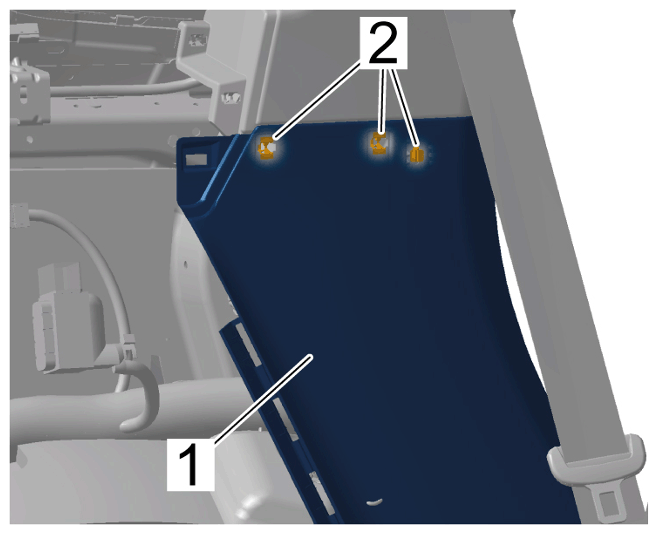

3. Unclip clamps -2-  and unclip C-pillar trim panel (lower part) -1-  at the C-pillar trim panel (upper part).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   C-pillar trim panel (lower part)

4. Unclip C-pillar trim panel (lower part) -1-  at the C-pillar -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   C-pillar trim panel (lower part) on C-pillar

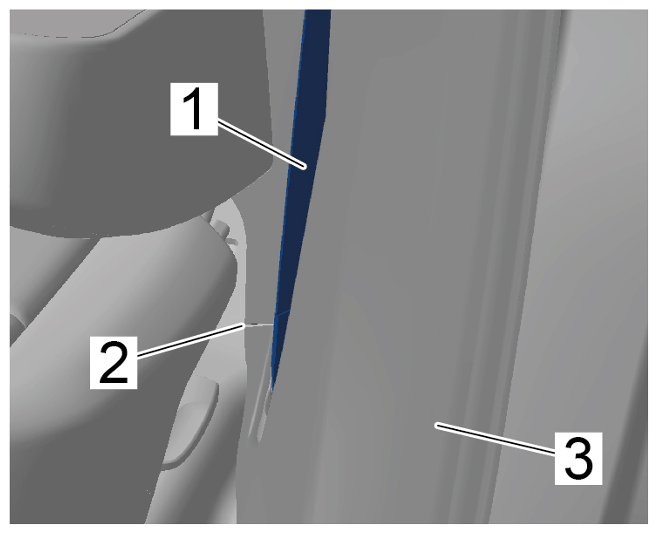

5. Guide out rear three-point belt -1-  through the yap -2-  in the C-pillar trim panel (lower part) -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Gap in C-pillar trim panel (lower part)

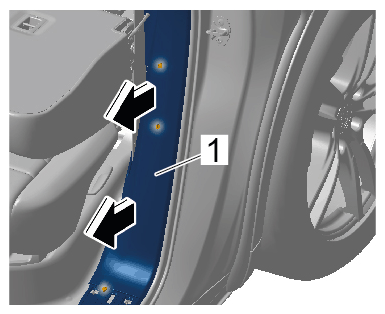

6. Remove C-pillar trim panel (lower part) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   C-pillar trim panel (lower part) on C-pillar
