Installing B-Pillar Trim Panel (Upper Part)

WARNING: This page is about a different variant/trim than selected.

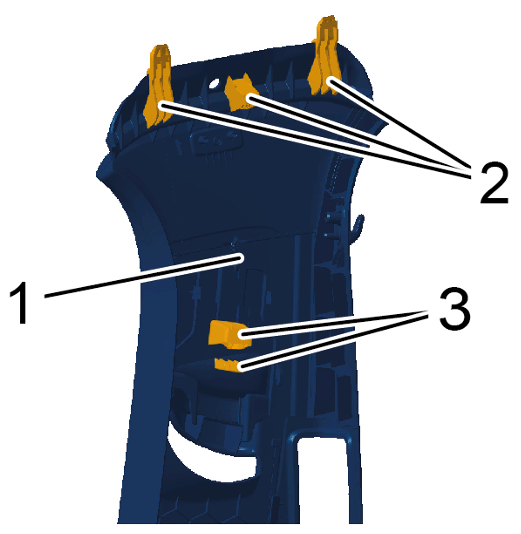

  1. Swivel in B-pillar trim panel (upper part) -1-  and make sure that the guide lugs -2 and 3-  are positioned correctly.
    G15239766Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper part of B-pillar trim panel

  2. The remaining installation steps are performed in reverse order.
