Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.7 ftlb.)
Screws for armrest	item 2	Tightening torque	2.8 Nm (2.1 ftlb.)

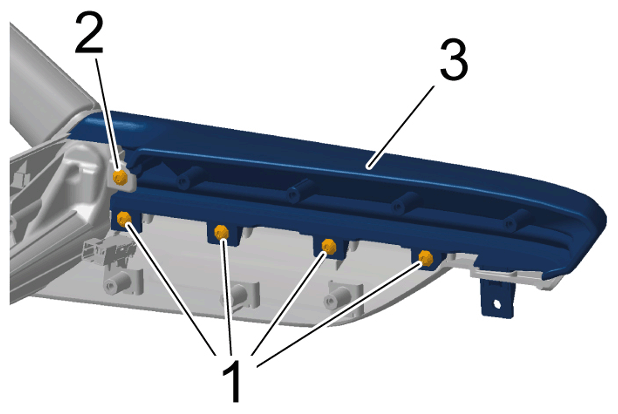

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest
Screw for armrest trim	Item 2	Tightening torque	2.3 Nm (1.7 ftlb.)

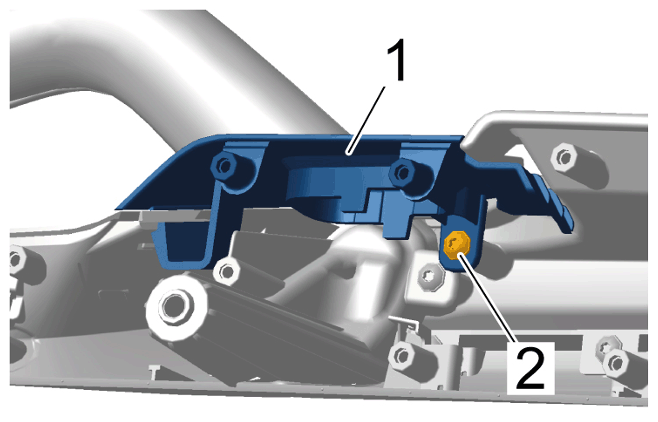

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest
Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.7 ftlb.)
Screws for armrest	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)

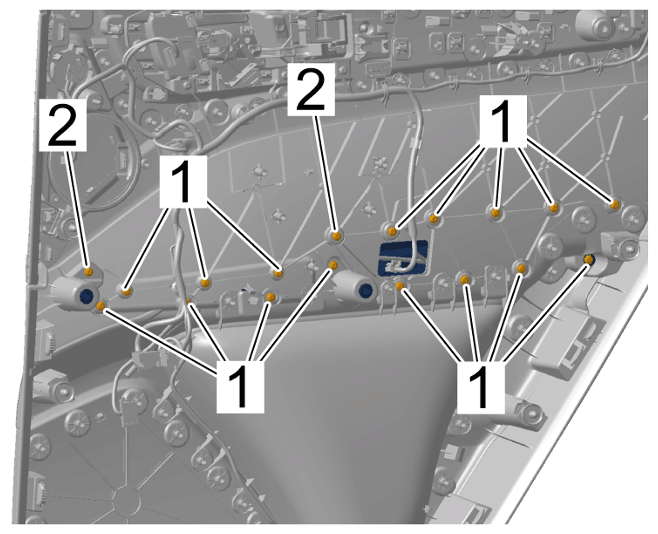

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
