Removing Rear Handle

WARNING: This page is about a different variant/trim than selected.

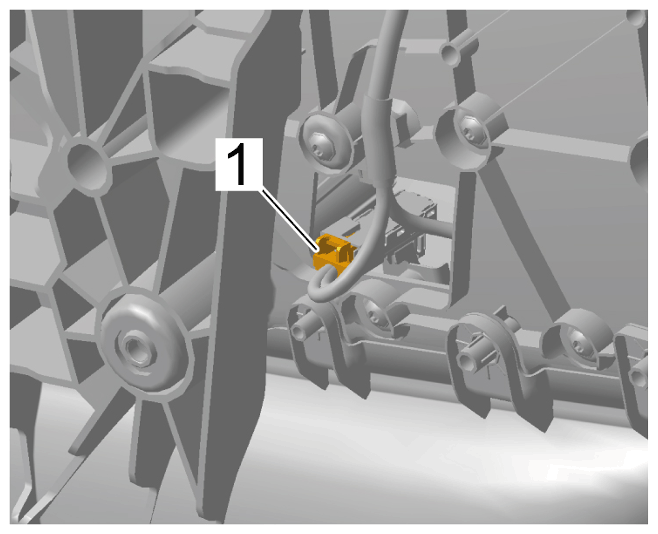

Release and disconnect electric plug connection -1- from ambient lighting.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

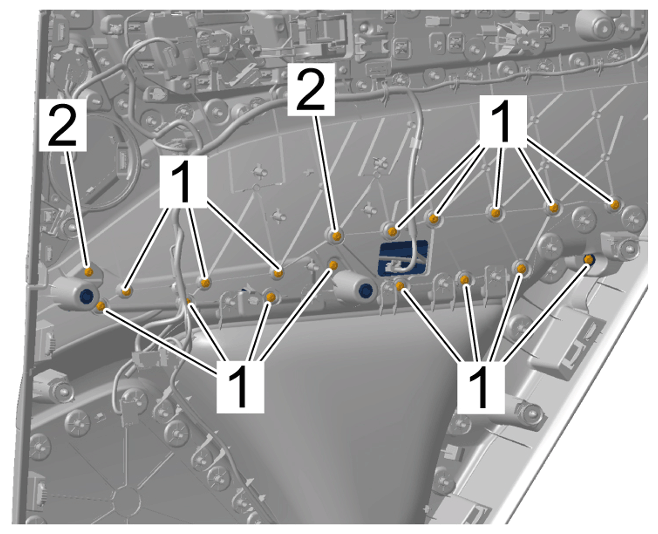

Unscrew screws -1 and 2- and remove rear handle together with the armrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

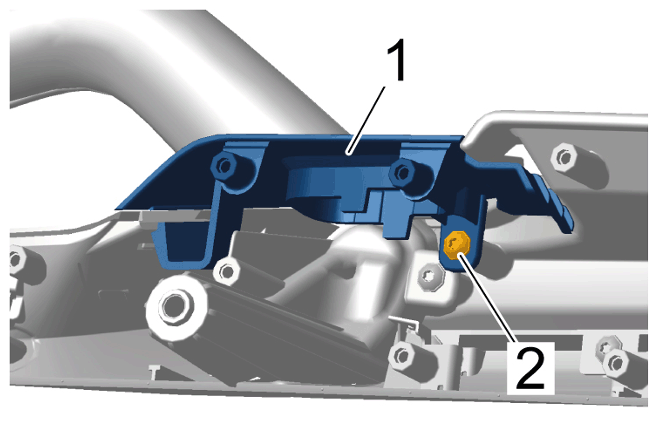

Unscrew screw -2- and remove trim -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

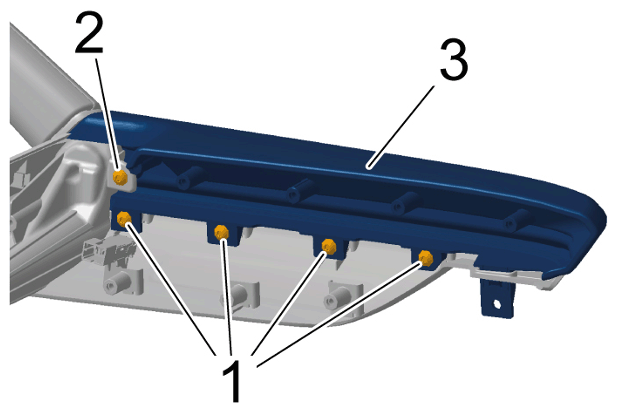

Unscrew screws -1 and 2- and remove armrest -3- by pulling it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest

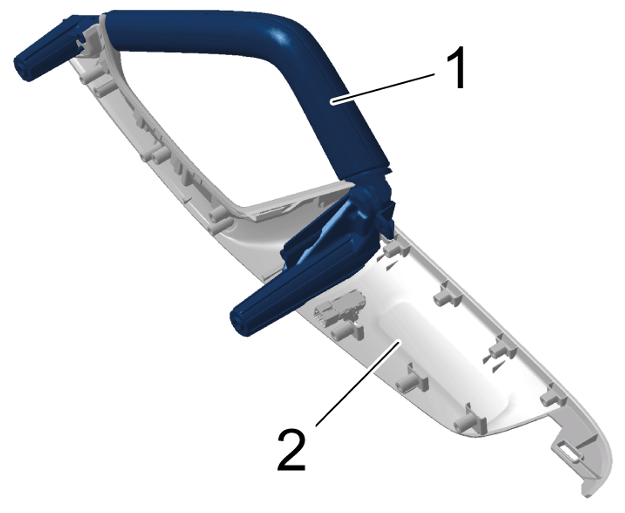

Remove handle -1- from the outer tray -2- of the armrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Handle
