Removing Front Handle

WARNING: This page is about a different variant/trim than selected.

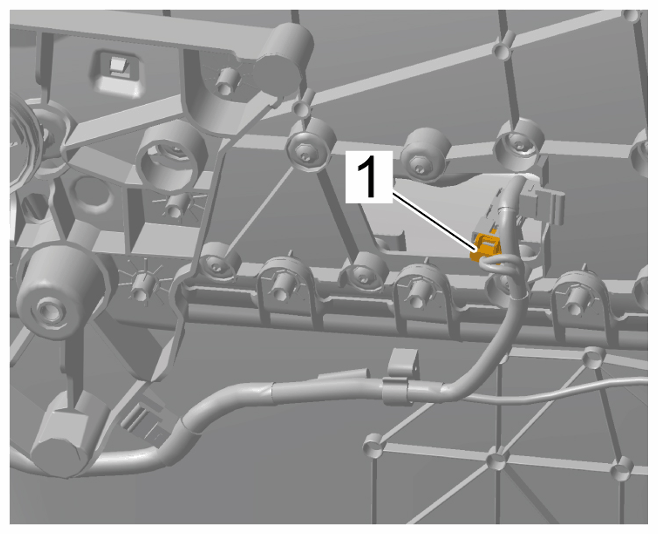

Release and disconnect electric plug connection -1- on ambient lighting.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Unscrew screws -1 and 2- and remove front handle together with the armrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Loosen sound absorber from front door panel.
Press retaining lugs -1- together all the way around and remove switch for power windows -2- by pulling it up out of the armrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch for power windows

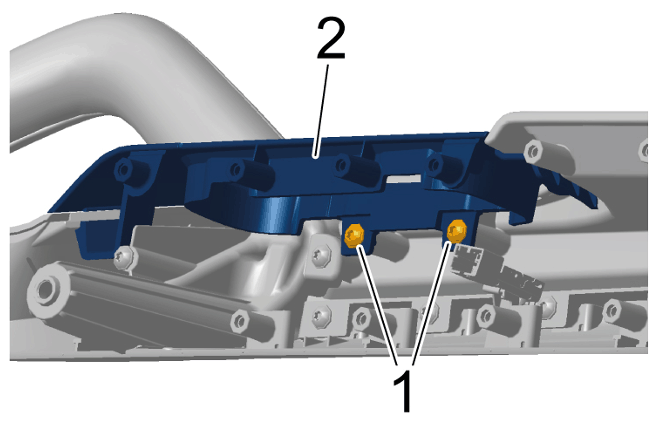

Unscrew screws -1- and remove trim -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim
Unscrew screws -1 and 2- , release retaining lug -3- and remove armrest -4- by pulling it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Armrest
Pull off retaining clip -3- and remove handle -1- from lower tray of the armrest -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Handle
