Installing Trim For Front Door Panel

WARNING: This page is about a different variant/trim than selected.

Information

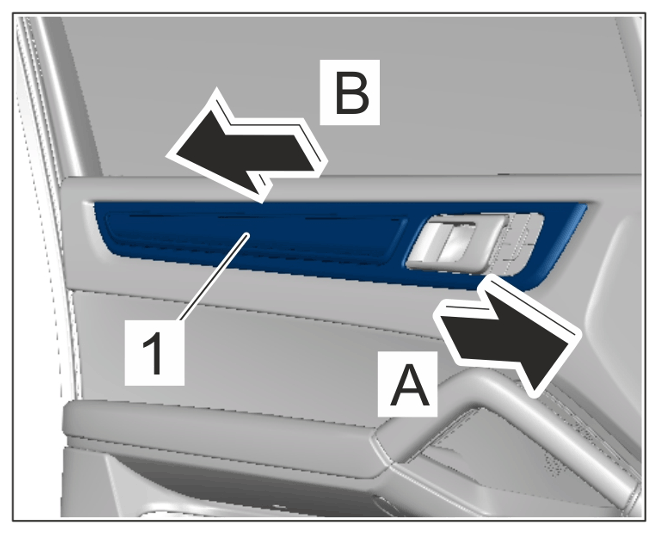

During installation, make sure to fit the door panel trim -1-  at the middle centring mandrel first and then clip it in towards the front -arrow A-  and rear -arrow B-  .

G15239735Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door panel trim

  1. Install trim for front door panel.
