Remove Front Door Panel

WARNING: This page is about a different variant/trim than selected.
  1. Unclip trims at the upper edge -1-  using a plastic wedge and swivel them down and out.
    G15239725Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trims

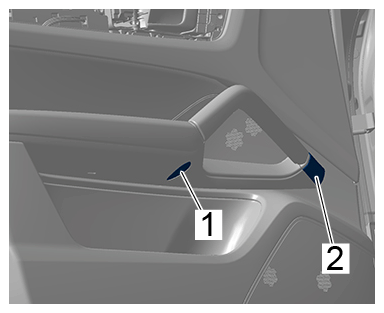

  2. Push trims -2-  forward using a plastic wedge and remove them.
    G15239726Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trims

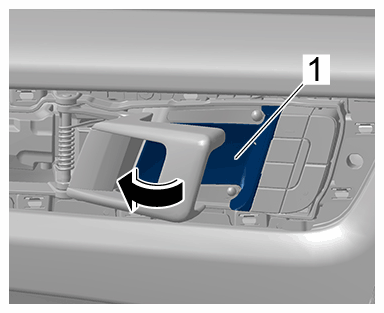

  3. Open door handle -Arrow-  and unclip cover
    G15239727Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

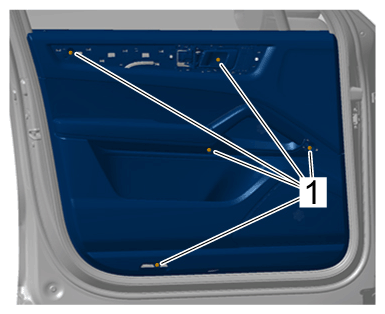

  4. Unscrew screws -1-  .
    G15239728Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

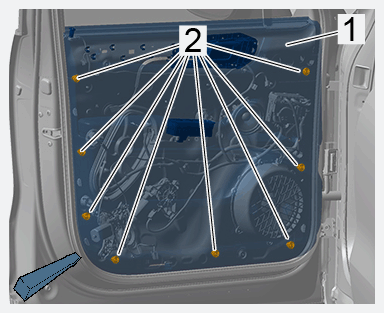

  5. Unclip clips -2-  in front door panel -1-  using a plastic wedge.
    G15239729Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

  6. Remove front door panel by pulling it upwards until the electric plug connections and cable for door opener are accessible.

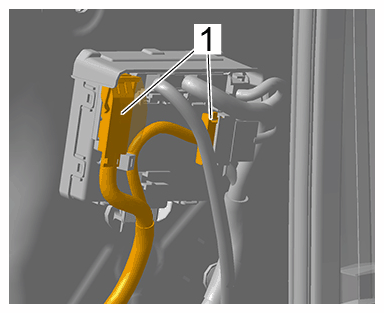

  7. Release electric plug connections -1-  and disconnect them.
    G15239730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

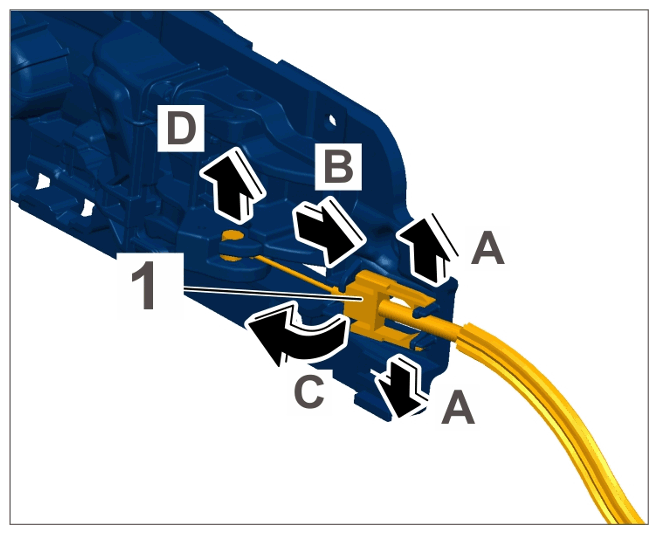

  8. Disengage cable for door opener -1-  .
    G15239731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable for door opener

    1. 8.1  Spread locking lugs outwards -arrow A-  and pull cable for door opener -1-  to the rear -Arrow B-  .
    2. 8.2  Swivel cable for door opener -1-  in direction of arrow -Arrow C-  until the actuator at the front is free.
    3. 8.3  Remove cable for door opener -1-  (-Arrow D-  ).
  9. Remove front door panel.
