Removing A-Pillar Trim Panel (Lower Part)

WARNING: This page is about a different variant/trim than selected.

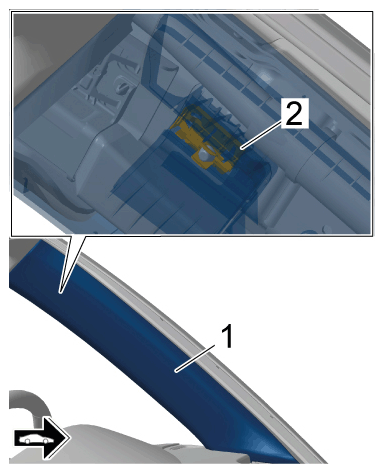

  1. Loosen A-pillar trim panel -1-  in the upper area until retaining clip -2-  is accessible.
    G15239717Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    A-pillar trim panel

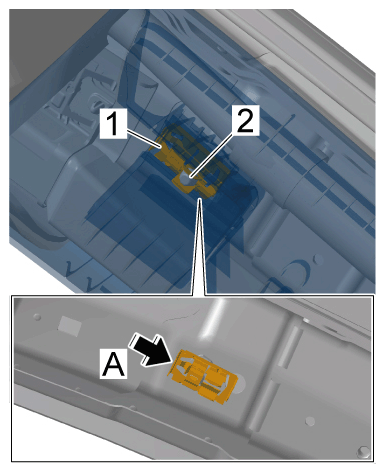

  2. Move retaining clip -1-  using a suitable tool -Arrow A-  until bolt -2-  releases retaining clip -1-  .
    G15239718Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Retaining clip on A-pillar trim panel

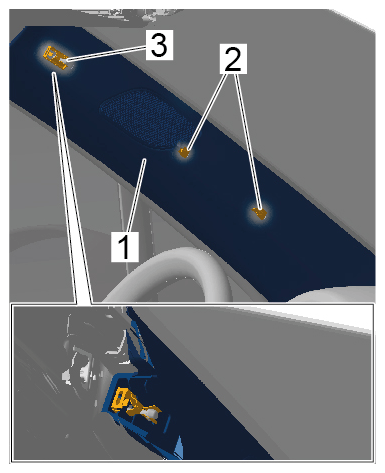

  3. Unclip A-pillar trim panel -1-  at fixing clips -2-  and remove it.
    G15239719Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    A-pillar trim panel
