Installing A-Pillar Trim Panel
WARNING: This page is about a different variant/trim than selected.
Information
Check fixing clips, retaining clips and expanding clips for damage and replace them if necessary.
Check that all fixing clips, retaining clips and expanding clips are fitted at the correct position.

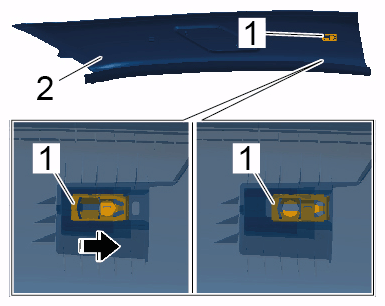

- Move retaining clip -1-
on A-pillar trim panel -2-
as far as it will go -Arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Retaining clip on A-pillar trim panel

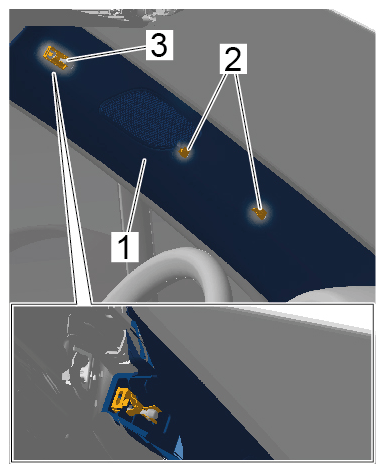

- Fit and clip in A-pillar trim panel -1-
in the cut-out using retaining clip -3-
and fixing clips -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
A-pillar trim panel
