Removing Centre Floor Covering
WARNING: This page is about a different variant/trim than selected.

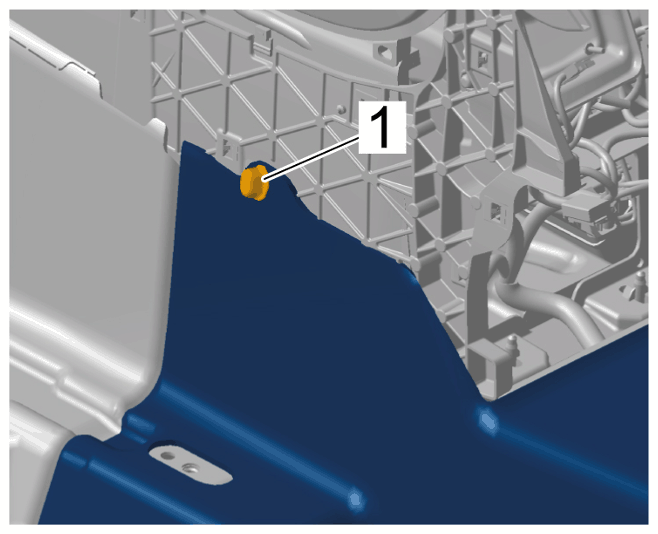

- Unclip fastening plug -1-
at the centre console.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening plug
- Guide out and lift up centre floor covering in the rear area.

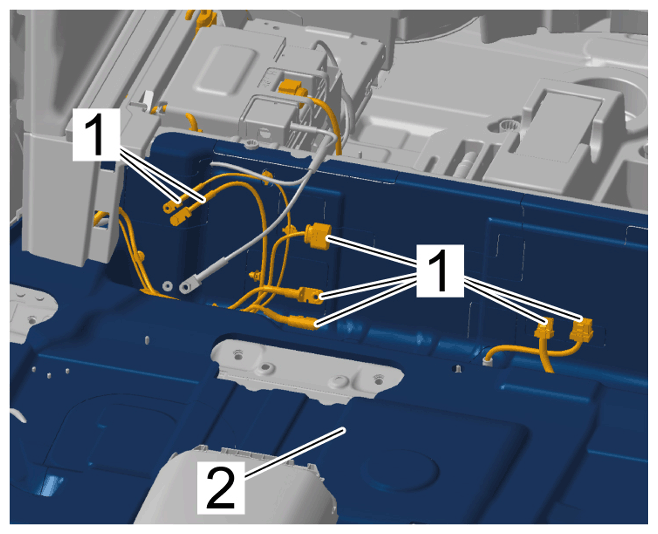

- Guide out electric lines -1-
at the centre floor covering -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric lines
- Pull centre floor covering -2-
forward and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Centre floor covering
