Removing Cover For (Rear) Lock Carrier

WARNING: This page is about a different variant/trim than selected.

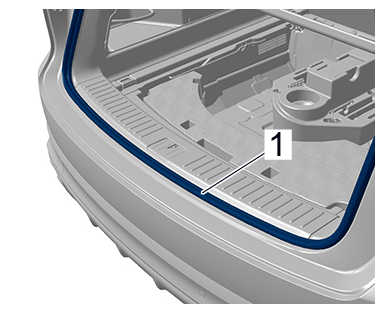

Detach seal -1- in the (rear) lock carrier cover area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Luggage compartment seal
Open loadspace floor.
Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

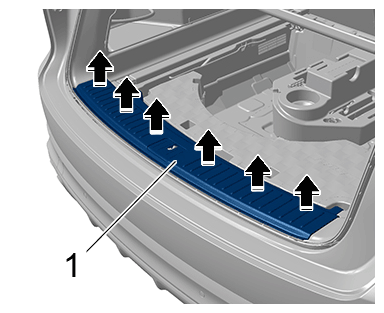

Unclip cover on (rear) lock carrier -1- and remove it upwards -Arrows-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on (rear) lock carrier
