Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove front trim panel.

    > 700219 REMOVING AND INSTALLING FRONT TRIM PANEL

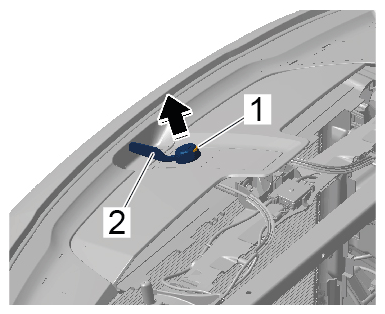

  2. Pull off retaining clip -1-  using a suitable tool and remove lid release -2-  (-Arrow-  ).
    G15239700Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lid release
