Removing Dashboard Cover (On Passenger's Side)

WARNING: This page is about a different variant/trim than selected.
  1. Loosen dashboard cover (on passenger's side) -1-  .

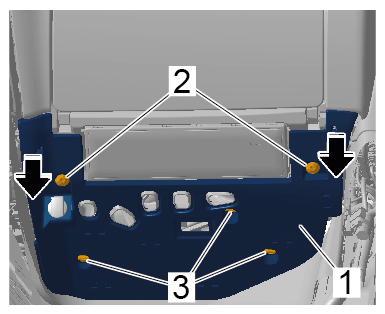

    G15239686Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Dashboard cover (passenger's side)

    1. 1.1  Unscrew and remove screws -2-  .
    2. 1.2  Unscrew plastic screws -3-  by hand.
    3. 1.3  Unclip dashboard cover (on passenger's side) -1-  (-Arrows-  ).
  2. Remove dashboard cover (on passenger's side).

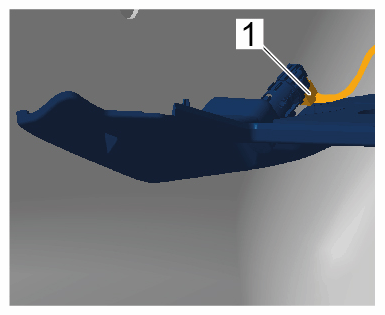

    G15239687Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    1. 2.1  Remove dashboard cover (on passenger's side) by pulling it downwards until the electric plug connection -1-  is accessible.
    2. 2.2  Release and unplug electric plug connection -1-  .
    3. 2.3  Remove dashboard cover (on passenger's side).
