Removing Dashboard Cover (Driver's Side)

WARNING: This page is about a different variant/trim than selected.

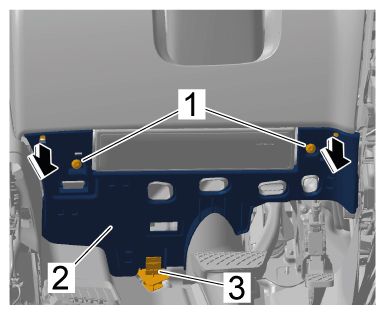

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Unclip dashboard cover (on driver's side) -2- (-Arrows- ) until the OBD plug socket is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard cover (on driver's side)

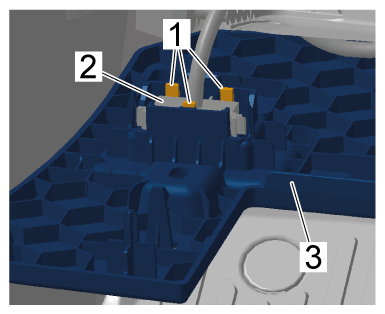

Release retaining lugs -1- and pull OBD plug socket -2- out of the dashboard cover (on driver's side) -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

OBD plug socket
Pull dashboard cover (on driver's side) -2- out of the retaining clip -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining clip
