Installing Dashboard Cover (Driver's Side)
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:

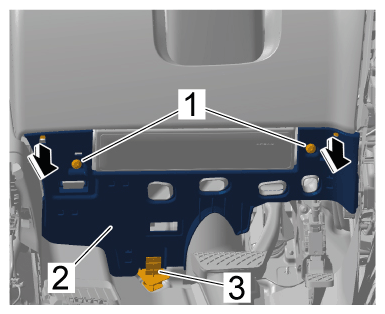

Slide dashboard cover (on driver's side) -2-
into the retaining clip -3-
.
Tighten screw -1-
on dashboard cover (on driver's side) -2-
to > Tightening torque 3 Nm (2 ftlb.)
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Dashboard cover (on driver's side)
