Removing Trim Panel For Dashboard (Driver's Side)

WARNING: This page is about a different variant/trim than selected.

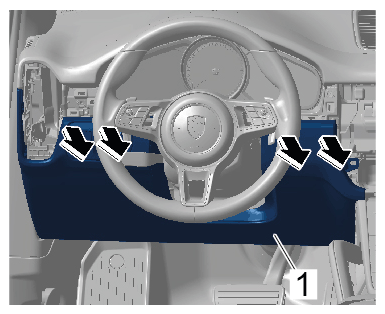

Unscrew screws at the bottom -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws
Unscrew screws at the sides -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screws
Unclip and pull out trim panel for dashboard on driver's side) -1- (-Anows-) until the electric plug connections are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for dashboard (driver's side)
Release and unplug electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Release and unplug electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
