Removing Dashboard Trim Panel (On Passenger's Side)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

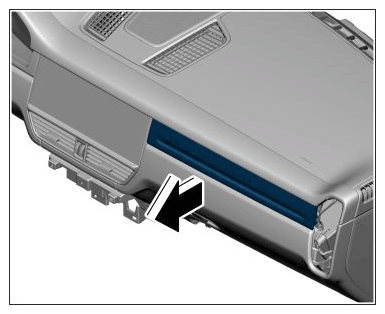

Dashboard trim panel

1. 1.1  Mark the position of the locking hook on the dashboard trim panel (on passenger's side) with a strip of adhesive tape.
2. 1.2  Carefully detach dashboard trim panel (on passenger's side) from right to left using a plastic wedge.
3. 1.3  Fit dashboard trim panel (on passenger's side) slightly against the retaining clips without engaging them.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

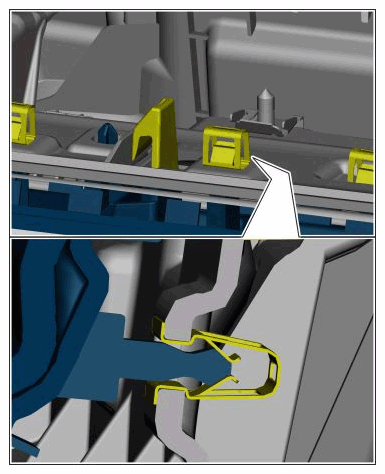

   Safety hooks

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Safety hooks

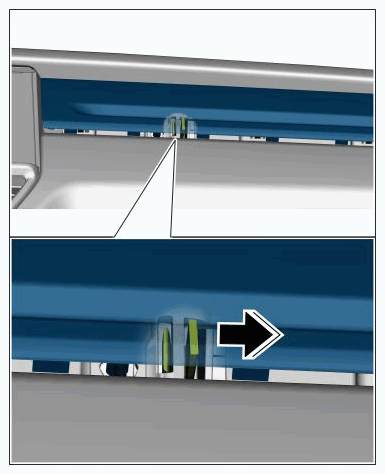

1. 2.1  Insert a screwdriver through the gap at the marked position.

   Release locking hook -Arrow-  .
