Removing Dashboard Trim Panel (Driver'S Side)

WARNING: This page is about a different variant/trim than selected.

Information

Too much force can damage the component.

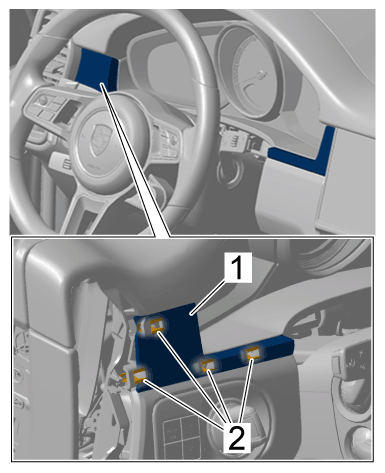

  1. Carefully unclip left dashboard trim panel (on driver's side) -1-  using > VAS 6845 - scraper set  from retaining clips -2-  .
    G15239629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left dashboard trim panel (on driver's side)

    Information

    Too much force can damage the component.

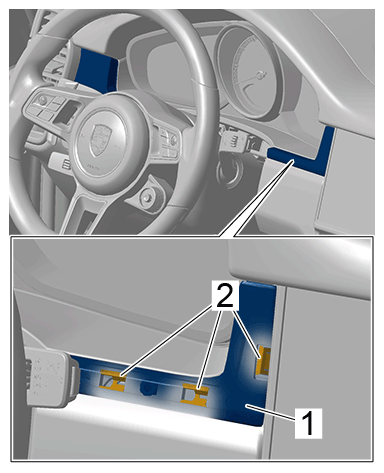

  2. Carefully unclip right dashboard trim panel (on driver's side) -1-  using > VAS 6845 - scraper set  from retaining clips -2-  .
    G15239630Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right dashboard trim panel (on driver's side)
