Adjusting Rear-Axle Camber

1. Remove stone guard for rear axle -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

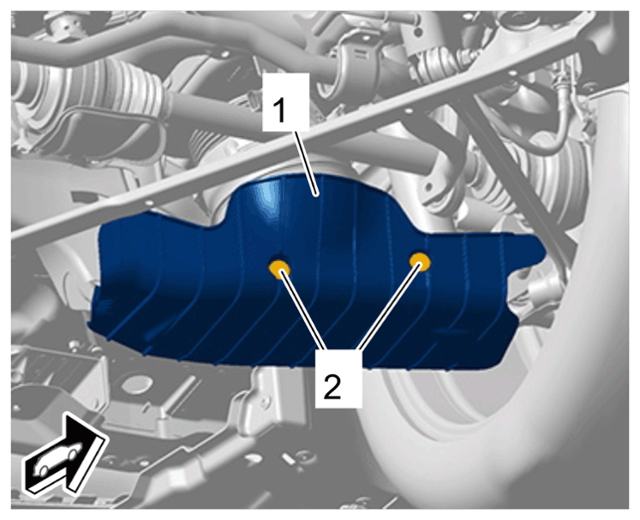

   Stone guard for rear axle

   1. 1.1 Unclip clips -2-  and remove stone guard for rear axle -1-  .
2. Adjust rear-axle camber.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

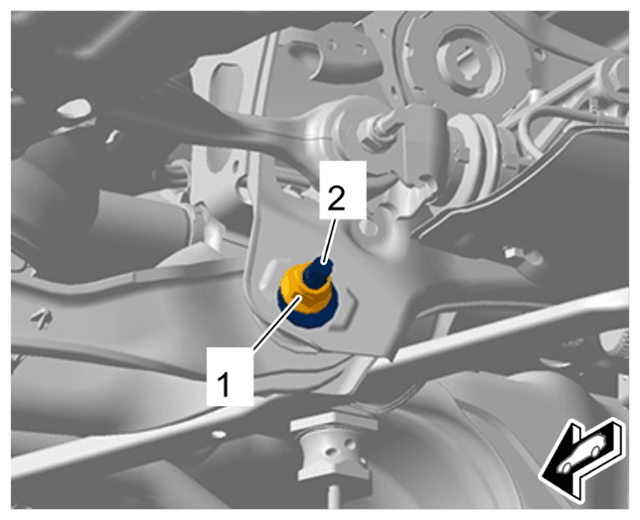

   Eccentric screw for rear-axle camber adjustment

   1. 2.1 Check camber value.

      > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT

   2. 2.2 Loosen nut -1-  .
   3. 2.3 Turn camber eccentric adjuster -2-  to adjust the camber.

      > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT

   4. 2.4 Tighten nut -1-  to > Tightening torque 140 Nm (103 ftlb.) (103.3 ftlb.)  .
   5. 2.5 Check camber value again.
3. Install stone guard for rear axle -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stone guard for rear axle

1. 3.1 Position stone guard for rear axle -1-  and clip in new  clips -2-  .
