Removing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.

WARNING: Wheel bearing housing raised incorrectly

Risk of crushing
Risk of damage to components
- → Wear personal protective gear.
- → Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Disengage electric lines and plug connection -2- from holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Add-on parts - wheel bearing housing holder
Remove connecting link for anti-roll bar -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

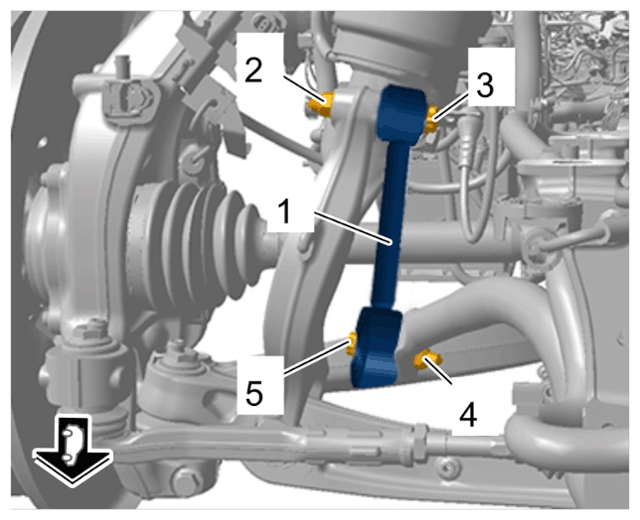

Front anti-roll bar connecting link
1. 2.1 Unscrew nuts -2 and 4- and counter at the screws -3 and 5- at the same time.
2. 2.2 Remove screw -3- .
3. 2.3 Press anti-roll bar slightly against the direction of travel using a suitable tool and remove the screw -5- at the bottom of the connecting link.
4. 2.4 Guide out connecting link for anti-roll bar -1- .
