Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Speed sensor front to wheel bearing housing	Item 1: Cheese head bolt M6 x 16	Tightening torque	9 Nm (6.6 ftlb.)

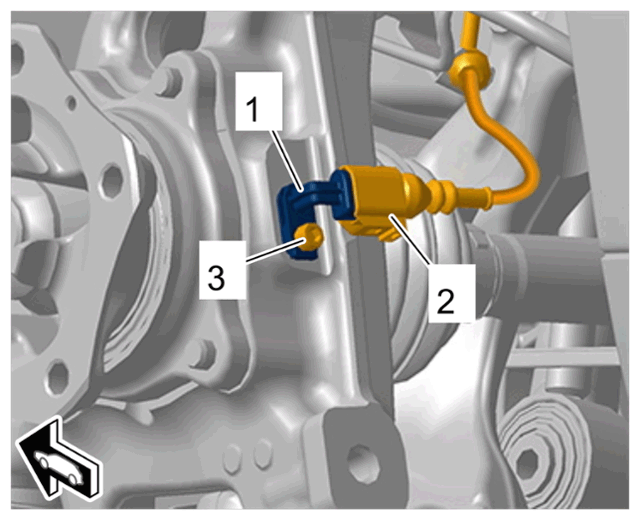

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front speed sensor
Drive shaft to wheel hub	Shouldered bolt, M16 x 1.5 x 72/always replace bolts following removal!	Initial tightening	200 Nm (148 ftlb.)
Drive shaft to wheel hub	Shouldered bolt, M16 x 1.5 x 72/always replace bolts following removal!	Final tightening	+ 180°
Drive shaft to transmission	Internal serration screw, M10 x 20/always replace screws following removal!	Initial tightening	50 Nm (37 ftlb.)
Drive shaft to transmission	Internal serration screw, M10 x 20/always replace screws following removal!	Final tightening	+ 90°
Drive shaft to transmission	Internal serration screw, M12 x 22/always replace screws following removal!	Initial tightening	90 Nm (67 ftlb.)
Drive shaft to transmission	Internal serration screw, M12 x 22/always replace screws following removal!	Final tightening	+ 90°
Heat shield to transmission, right	Combination screw, M8 x 22	Tightening torque	23 Nm (17 ftlb.)
Heat shield to transmission, left	Combination screw, M8 x 22	Tightening torque	23 Nm (17 ftlb.)
Tie-rod ball to wheel bearing housing	Item 2: Hexagon nut M14 x 1.5/Always replace nut following removal!	Tightening torque	140 Nm (103.3 ftlb.)

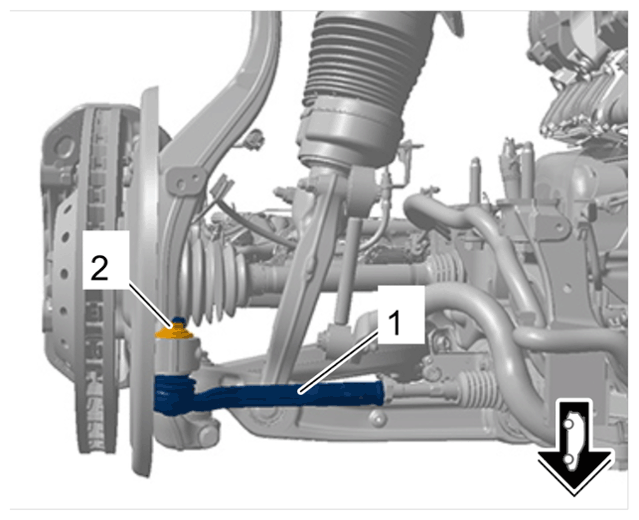

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for tie rod on wheel bearing housing
Axle joint to wheel bearing housing	Hexagon-head bolt, M10 x 70/always replace screws following removal!	Tightening torque	40 Nm (30 ftlb.)
Cable holder to wheel bearing housing	Internal serration screw, M8 x 25	Tightening torque	20 Nm (15 ftlb.)
Brake cover plate to wheel bearing housing	Item 2: Internal hexagon roundhead bolt M6 x 14	Tightening torque	10 Nm (7.4 ftlb.)

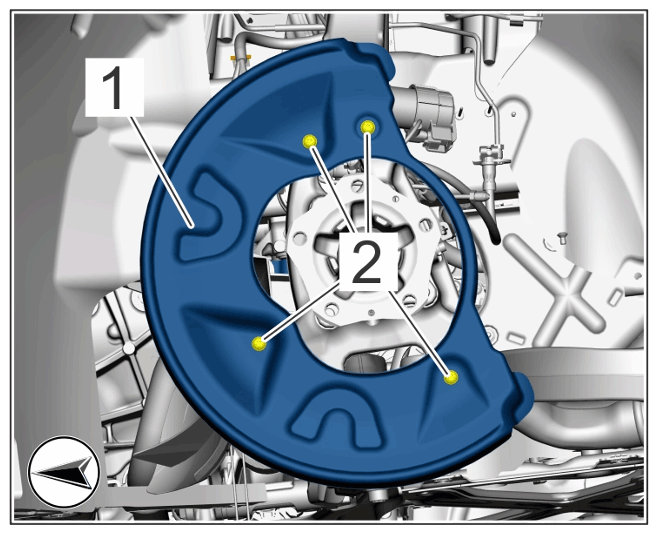

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake cover plate, front
Diagonal arm to wheel bearing housing	Item 7: Hexagon nut M14 x 1.5/always replace nut following removal!	Tightening torque	140 Nm (103.3 ftlb.)
Upper trailing arm to wheel bearing housing	Hexagon-head bolt, M10 x 130 and hexagon nut	Tightening torque	40 Nm (30 ftlb.)
