Removing Front Drive Shaft

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
- → Secure components to prevent them from falling down.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Information

One-piece or two-piece heat protection is installed, depending on engine type.
The one-piece heat protection is described here; the two-piece heat protection must also be completely removed.

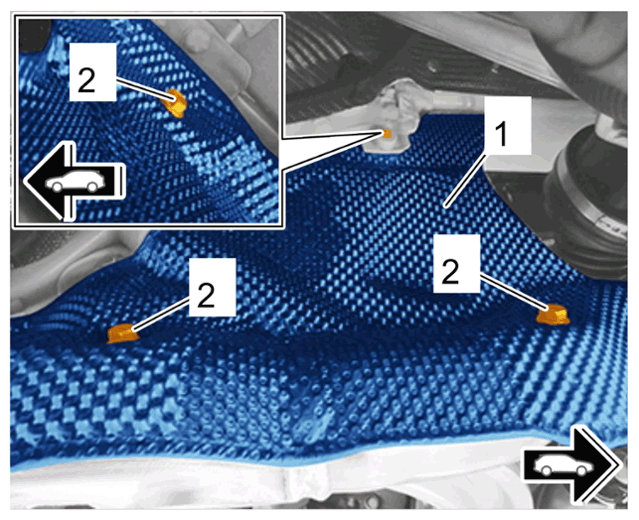

Remove heat protection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection
1. 1.1 Unscrew screws on heat protection -2- .
2. 1.2 Remove heat protection -1- .

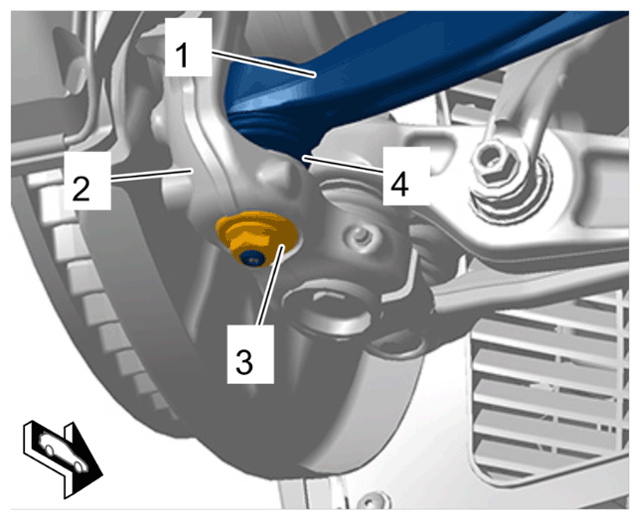

Loosen control arm -1- from wheel bearing housing -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control arm at wheel bearing housing
1. 2.1 Screw off nut on control arm joint pin -3- .
2. 2.2 Use > T10187 - ball joint puller to press axle joint off the wheel bearing housing -2- .
3. 2.3 Guide control arm -1- out of the wheel bearing housing -2- .

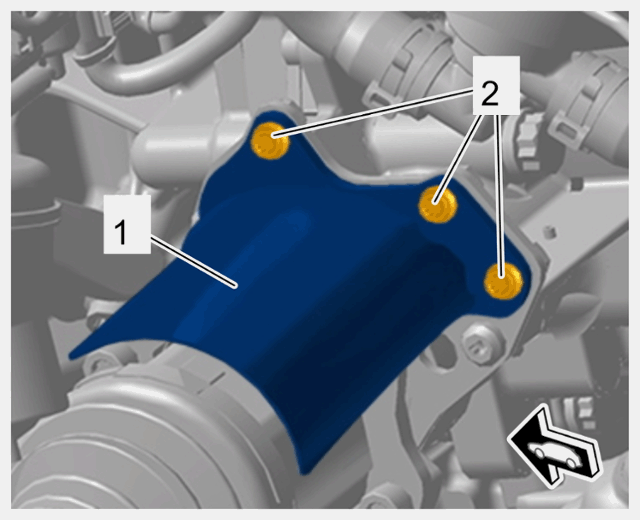

Remove drive shaft heat shield -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shaft heat shield
1. 3.1 Unscrew screws for heat shield on drive shaft -2- .
2. 3.2 Remove drive shaft heat shield -1- .

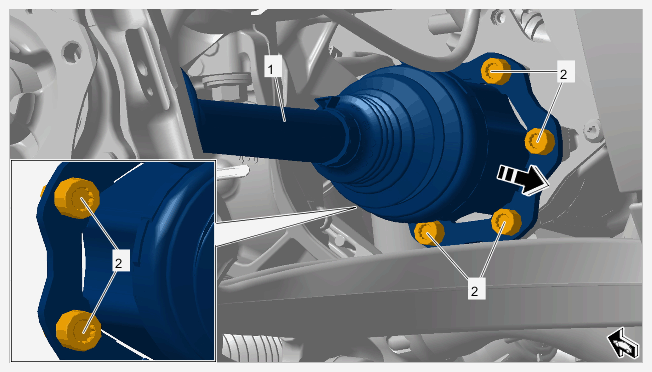

Remove drive shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shaft
1. 4.1 Unscrew drive shaft screws -2- .
2. 4.2 Guide drive shaft -1- to the rear on the transmission side -Arrow- and pull it out of the wheel bearing housing.
3. 4.3 Guide out and remove the drive shaft -1- .
