Adjusting Rear-Axle Camber

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

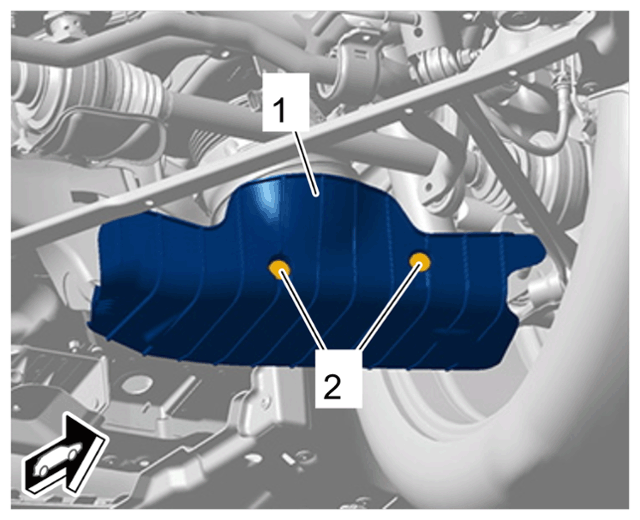

Stone guard for rear axle

1. 1.1  Unclip clips -2-  and remove stone guard for rear axle -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

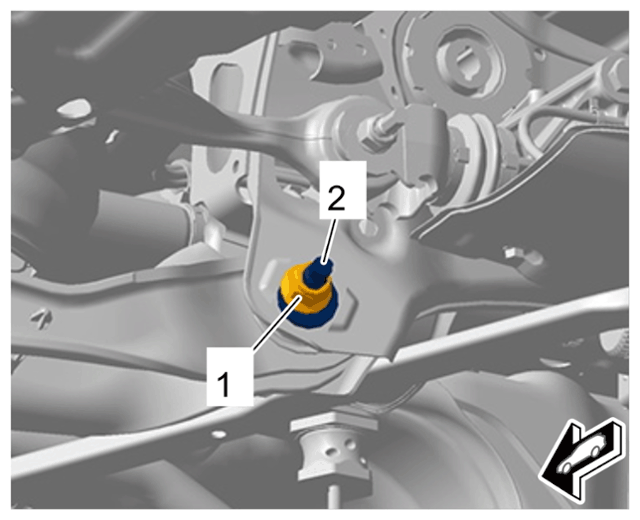

Eccentric screw for rear-axle camber adjustment

1. 2.1  Check camber value.

   > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT

2. 2.2  Loosen nut -1-  .
3. 2.3  Turn camber eccentric adjuster -2-  to adjust the camber.

   > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT

4. 2.4  Tighten nut -1-  to > Tightening torque 140 Nm (103 ftlb.) (103.3 ftlb.)  .
5. 2.5  Check camber value again.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stone guard for rear axle

1. 3.1  Position stone guard for rear axle -1-  and clip in new  clips -2-  .
