Removing Knee Airbag

WARNING: This page is about a different variant/trim than selected.
WARNING: Improper handling of airbag units
  • Triggering of airbag unit  .
  • System faults can occur  .
    1. → Remove ignition key or remote control (hand-held transmitter) and keep it outside of the transmission range.
    2. → External power supply must be de-energised.
    3. → Disconnect the battery and isolate the ground strap so that all contact with a ground carrier is avoided.
    4. → Wait 1 minute after disconnecting the battery.
    5. → Only pull off connector on the triggering unit after the waiting time has elapsed.
    6. → Keep space in front of the airbag unit free.
    7. → Replace damaged parts.
    8. → Always set airbag units down with the blow-out opening facing upwards.
    9. → Do not place any objects on the airbag units.
    10. → Store airbag units in a safe place.
    11. → Avoid contact with grease, oil, detergents, liquids or similar substances.
    12. → Store airbag units in a cool place. Maximum temperature: 90°C.

Information

Dispose of replaced and non-ignited airbag and seat-belt pretensioner units in accordance with local legal requirements and transport regulations.

  1. Wait 1 minute after disconnecting the battery.
  2. Screw off fastening nuts -2-  on knee airbag -1-  .

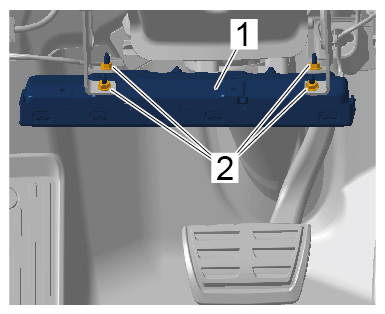

    G15237952Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts for knee airbag

  3. Release and disconnect electric plug connection -2-  on knee airbag -1-  .

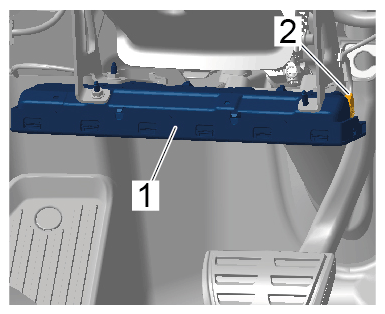

    G15237953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for knee airbag

  4. Remove knee airbag -1-  and set it down in accordance with the relevant instructions.
G15237954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knee airbag
