Removing Outer Rear Seat-Belt Buckle

WARNING: This page is about a different variant/trim than selected.
WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque
    1. → Always use new screws or nuts following removal.
    2. → Comply with instructions for repairs.
    3. → Observe specified tightening torques.
    4. → Carry out a visual inspection of parts used.
  1. Unclip electric wire harness -1-  from the seat frame -Arrows-  .
    G15237872Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

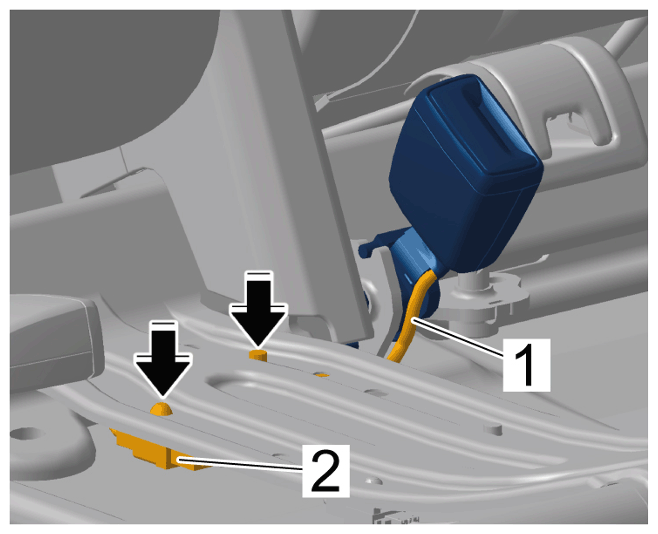

  2. Release and unplug electric plug connection -2-  .
    G15237873Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    Information

    Always replace screws on the seat-belt buckle after customer service and reworking.

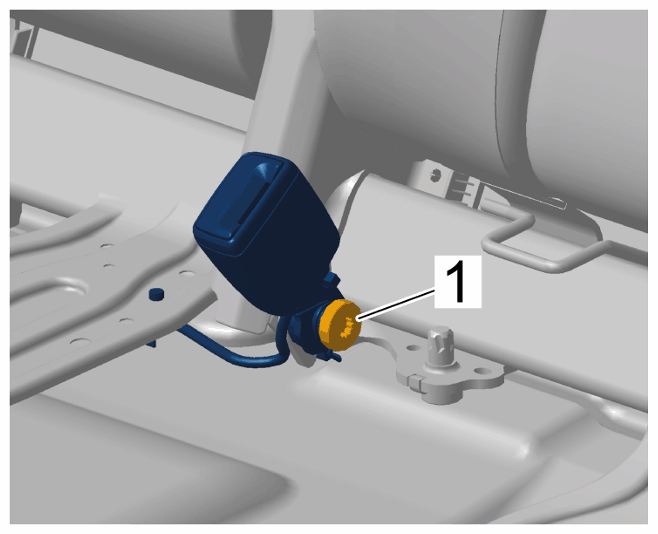

  3. Unscrew screw -1-  and remove outer rear seat-belt buckle.
G15237874Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
