Installing Outer Rear Seat-Belt Buckle
WARNING: This page is about a different variant/trim than selected.
Information
Always replace screws on the seat-belt buckle after customer service and reworking.
- Installation is performed in reverse order. Pay particular attention to the following:

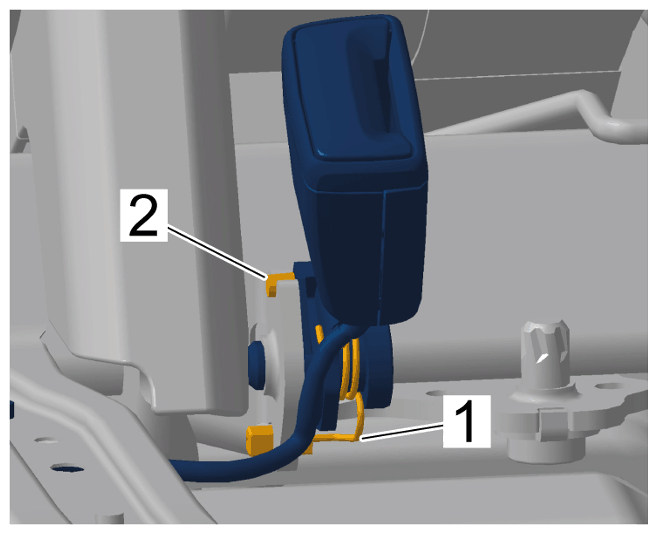

Check that the spring -1- and positioning pin -2- are positioned correctly as shown.
Tighten new screw to > Tightening torque 40 Nm (30 ftlb.) .
Spring
