Removing Rear Seat-Belt Buckle For Middle Seat

WARNING: This page is about a different variant/trim than selected.
WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque
    1. → Always use new screws or nuts following removal.
    2. → Comply with instructions for repairs.
    3. → Observe specified tightening torques.
    4. → Carry out a visual inspection of parts used.
  1. Release and unplug electric plug connection -1-  .
    G15237867Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

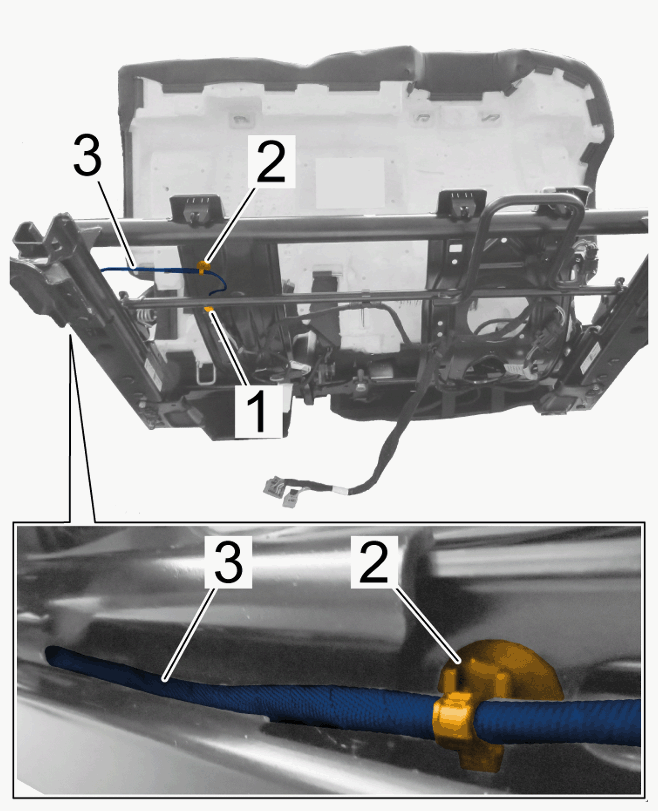

  2. Unclip clips -2-  and guide out electric wire harness -3-  .
    G15237868Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

    Information

    Always replace screws on the seat-belt buckle after customer service and reworking.

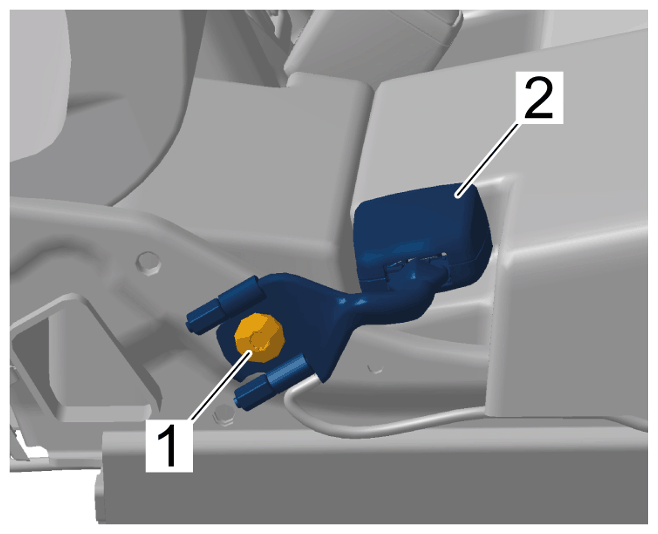

  3. Unscrew screw -1-  and remove rear seat-belt buckle for middle seat -2-  .
G15237869Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat-belt buckle for middle seat
