Removing Front Seat-Belt Buckle

WARNING: This page is about a different variant/trim than selected.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque
1. → Always use new screws or nuts following removal.
2. → Comply with instructions for repairs.
3. → Observe specified tightening torques.
4. → Carry out a visual inspection of parts used.

Unclip line bracket at the side -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket at the side
Release electric plug connection -2- , disconnect it and guide out electric line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

Information

Always replace fastening screws on seat-belt buckle after customer service and reworking.

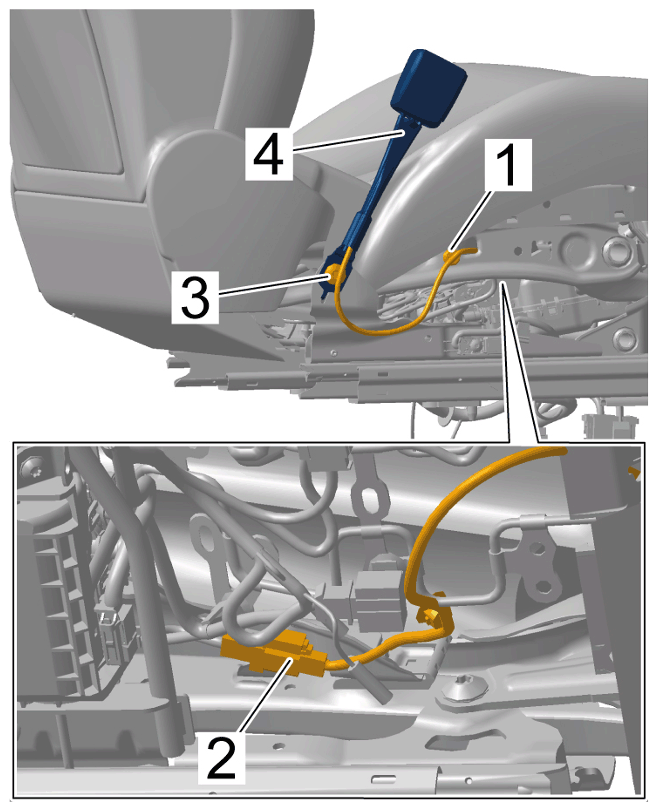

Unscrew fastening screw -3- and remove front seat-belt buckle -4- .

G15237864

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front seat-belt buckle
