Removing Actuator For Parking Brake
WARNING: This page is about a different variant/trim than selected.
- Unscrew screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

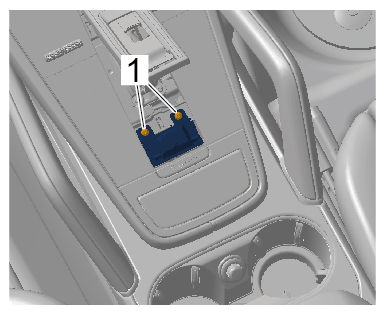

Screw on parking brake actuator
- Remove parking brake actuator -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

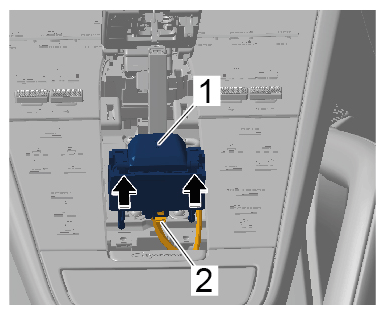

Parking brake actuator
- 2.1
Pull parking brake actuator -1-
up out of retaining clips -Arrows-
.
- 2.2
Release electric plug connection -2-
and disconnect it.
- 2.3
Remove parking brake actuator -1-
.
